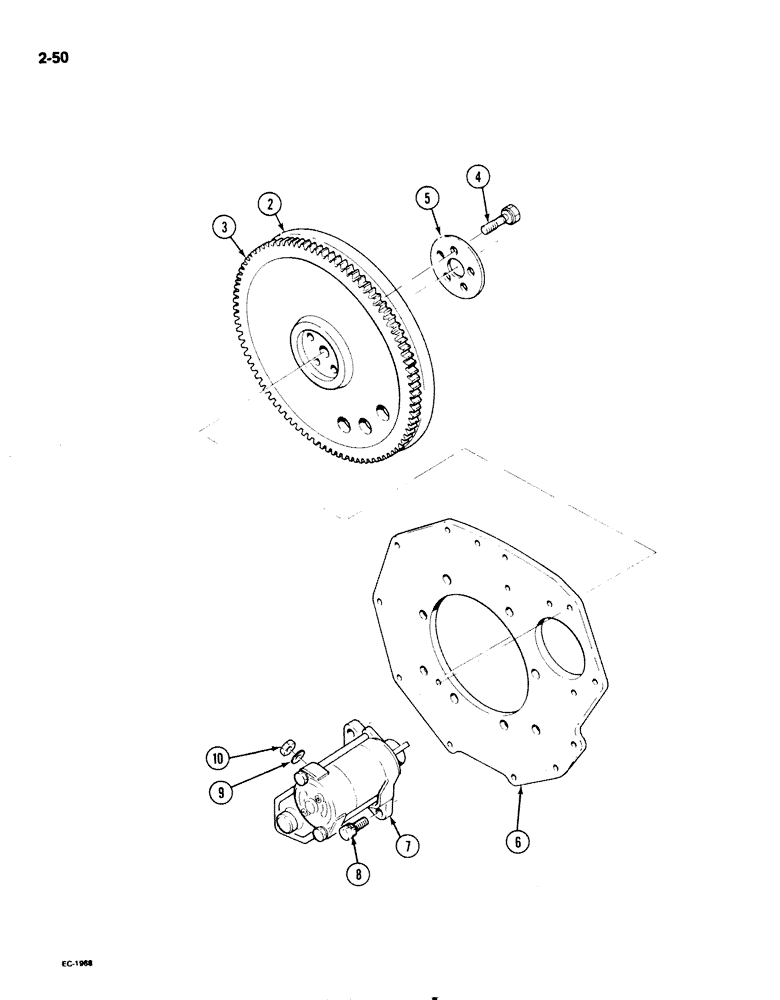

Запчасти Case 1825 (2-50) - FLYWHEEL AND STARTER MOTOR, DIESEL MODELS (02) - ENGINE

1959371C1

FLYWHEEL

ASSEMBLY crankshaft, Includes: Ref. 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

FLYWHEEL order flywheel assembly 1959371C1

1шт.

3

1959370C1

GEAR

ring

1шт.

4

1959374C1

BOLT

flywheel

5шт.

5

1959377C1

WASHER

flywheel

1шт.

6

1959378C1

PLATE

rear end

1шт.

7

1959380C1

STARTING MOTOR

STARTER ASSEMBLY engine, parts list page 4-109

1шт.

8

1959382C1

BOLT

starter motor mounting

2шт.

9

1959171C1

SPRING WASHER

lock

1шт.

10

1959269C1

NUT

M10

1шт.
