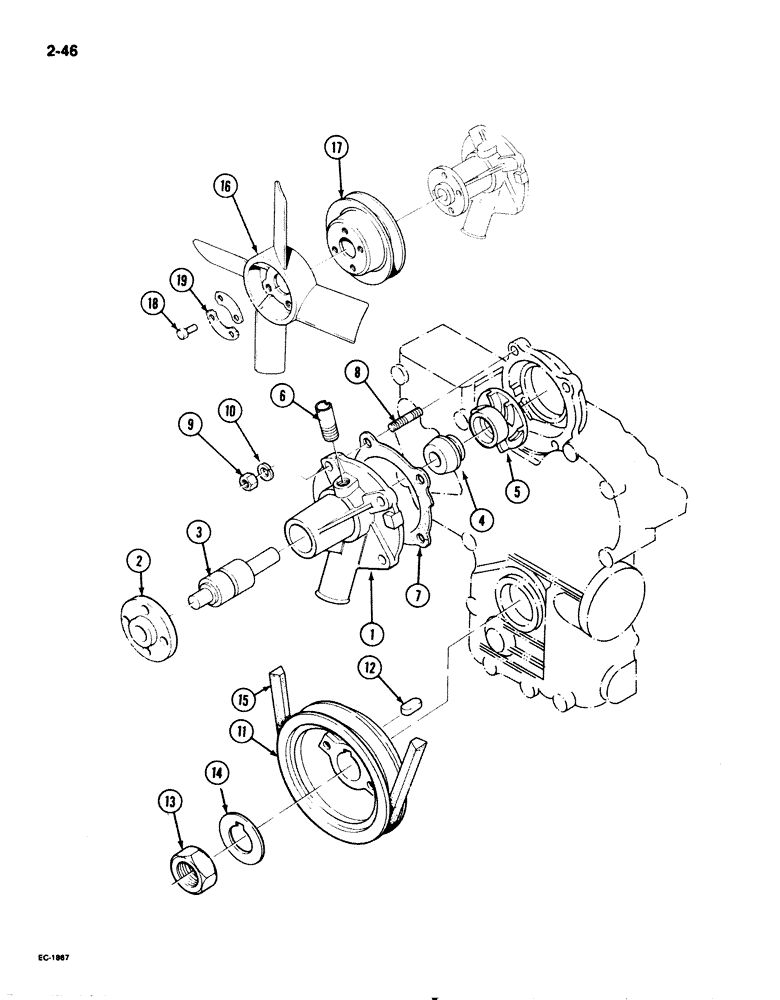

Запчасти Case 1825 (2-46) - WATER PUMP, DIESEL MODELS (02) - ENGINE

1

1959498C1

PUMP

ASSEMBLY water, Includes: Ref. 2 - 5

1шт.

2

1959500C1

FLANGE

water pump

1шт.

3

1959501C1

BEARING ASSY

BEARING water pump

1шт.

4

1959502C1

SEAL

mechanical

1шт.

5

1959503C1

IMPELLER

water pump

1шт.

6

1959434C1

PIPE,6.5 mm ID, 10.5 mm OD, 27 mm Length

TUBE water return

1шт.

7

1959505C1

GASKET

water pump

1шт.

8

1959506C1

STUD

water pump

4шт.

9

1959205C1

NUT

cover stud, M6

4шт.

10

1959206C1

SPRING WASHER

lock

4шт.

11

1959508C1

PULLEY

fan drive

1шт.

12

1959306C1

KEY

feather

1шт.

13

1959509C1

NUT,Hex, M20 x 5, RH

crankshaft M20

1шт.

14

1959511C1

WASHER

crankshaft

1шт.

15

1959510C1

BELT

Fan

1шт.

16

A173837

FAN

water pump

1шт.

17

1959513C1

PULLEY

fan

1шт.

18

1959476C1

BOLT

fan

4шт.

19

1959514C1

WASHER

PLATE fan

2шт.
