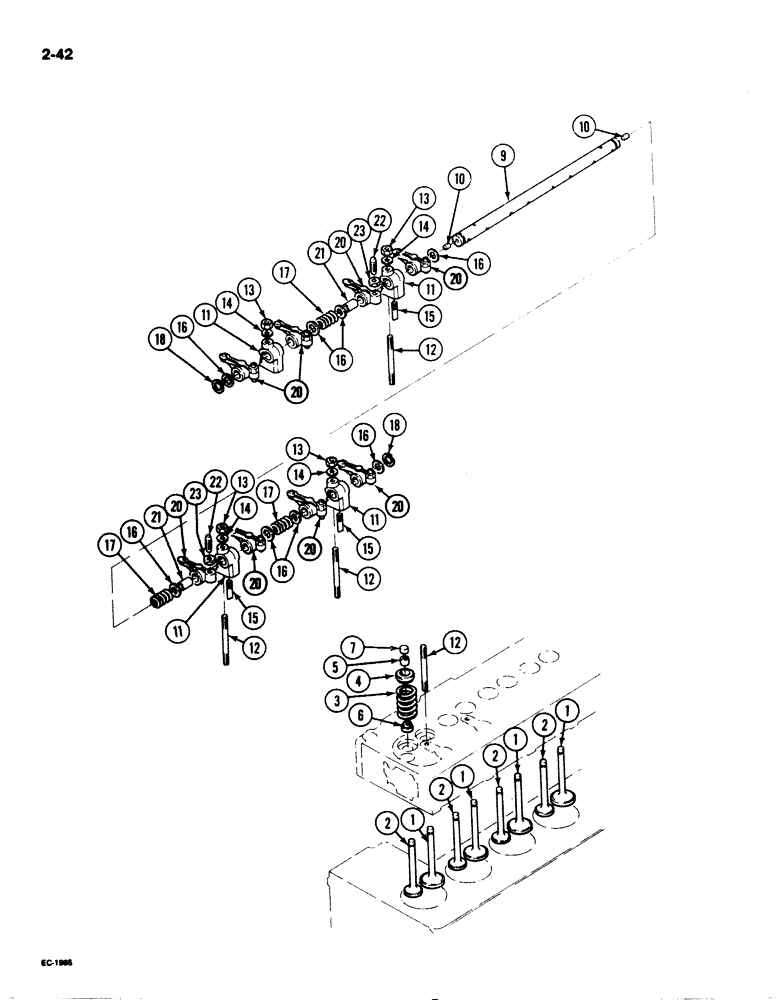

Запчасти Case 1825 (2-42) - VALVE MECHANISM AND ROCKER ARM, DIESEL MODELS (02) - ENGINE

1

1959274C1

VALVE

inlet

4шт.

2

1959275C1

VALVE

exhaust

4шт.

3

1959276C1

SPRING

valve

8шт.

4

1959277C1

RETAINER

valve spring

8шт.

5

1959278C1

SPACER

KEEPER valve spring

16шт.

6

1959279C1

SEAL

valve stem

8шт.

7

1959280C1

PLUG

CAP valve

8шт.

1959284C1

SHAFT

ASSEMBLY rocker arm, Includes: Ref. 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

ROCKER shaft, order shaft assembly 1959284C1

1шт.

10

1959283C1

SET SCREW

set, rocker arm, 6 x 9 mm

2шт.

11

1959286C1

BRACKET

rocker arm

4шт.

12

1959287C1

STUD

bracket, M7 x 87 mm

4шт.

13

1959288C1

NUT

bracket stud, M7

4шт.

14

1959289C1

WASHER

flat, 7.5 x 15 x 1.6 mm

4шт.

15

1959290C1

SET SCREW

set, rocker arm, M4 x 26 mm

4шт.

16

1959291C1

WASHER

rocker arm shaft, 11.2 x 17 x 1 mm

8шт.

17

1959292C1

SPRING

rocker arm

3шт.

18

1959293C1

RING, SNAP

RING snap, external

2шт.

19

1959294C1

ARM

ASSEMBLY rocker, Includes: Ref. 20 - 21

8шт.

20

NSS

NOT SOLD SEPARAT

ROCKER arm, order arm assembly 1959294C1

8шт.

21

1959296C1

BUSHING

rocker arm

8шт.

22

1959297C1

ADJUSTMENT SCREW

adjusting, M7 x 25.5 mm

8шт.

23

1959298C1

NUT

adjusting screw, M7

8шт.
