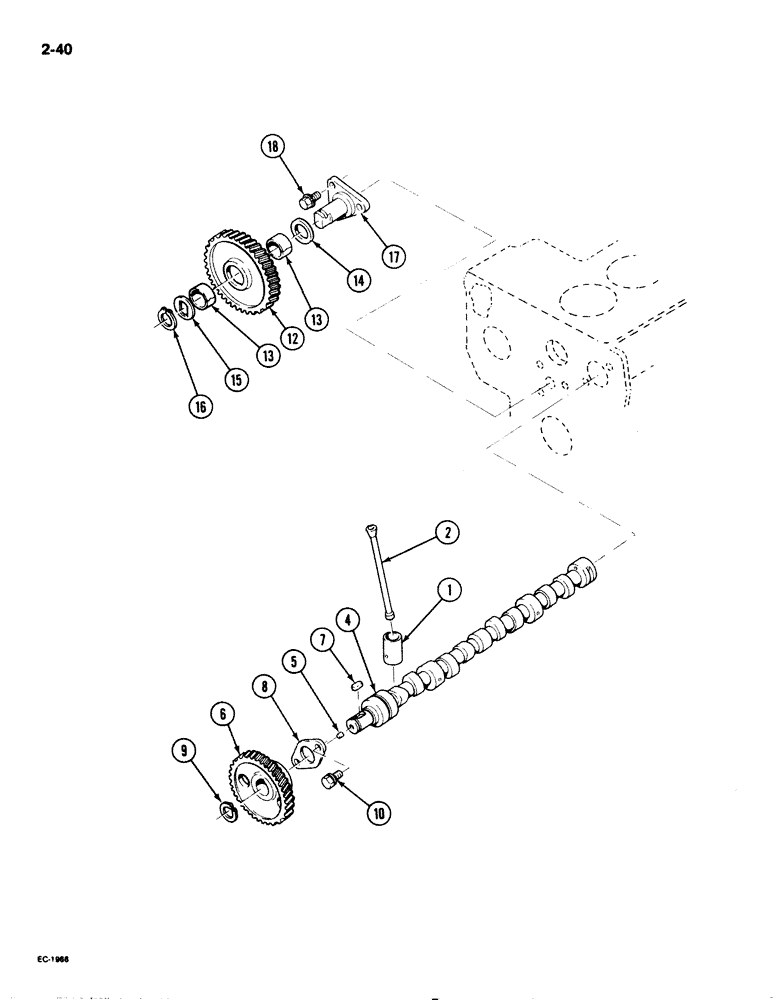

Запчасти Case 1825 (2-40) - CAMSHAFT, DIESEL MODELS (02) - ENGINE

1

1959299C1

BUSHING

TAPPET push rod

8шт.

2

1959300C1

PUSH ROD

ROD push

8шт.

1959309C1

CAMSHAFT

ASSEMBLY engine, Includes: Ref. 4 - 9

1шт.

4

1959310C1

CAM

SHAFT engine

1шт.

5

1959304C1

PLUG

blind

2шт.

6

1959305C1

GEAR

camshaft

1шт.

7

1959306C1

KEY

feather

1шт.

8

1959307C1

PLATE

camshaft

1шт.

9

1959308C1

RING, SNAP

RING snap, external

1шт.

10

1959237C1

BOLT

camshaft plate

2шт.

1959312C1

GEAR

ASSEMBLY idler, Includes: Ref. 12 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR idler, order gear assembly 1959312C1

1шт.

13

1959314C1

BUSHING

idler gear

2шт.

14

1959315C1

COLLAR

idler gear No. 1 cylinder

1шт.

15

1959316C1

COLLAR

idler gear No. 2 cylinder

1шт.

16

1959317C1

RING, SNAP

RING snap, external

1шт.

17

1959318C1

SHAFT

idler gear

1шт.

18

1959319C1

BOLT

idler gear shaft

3шт.
