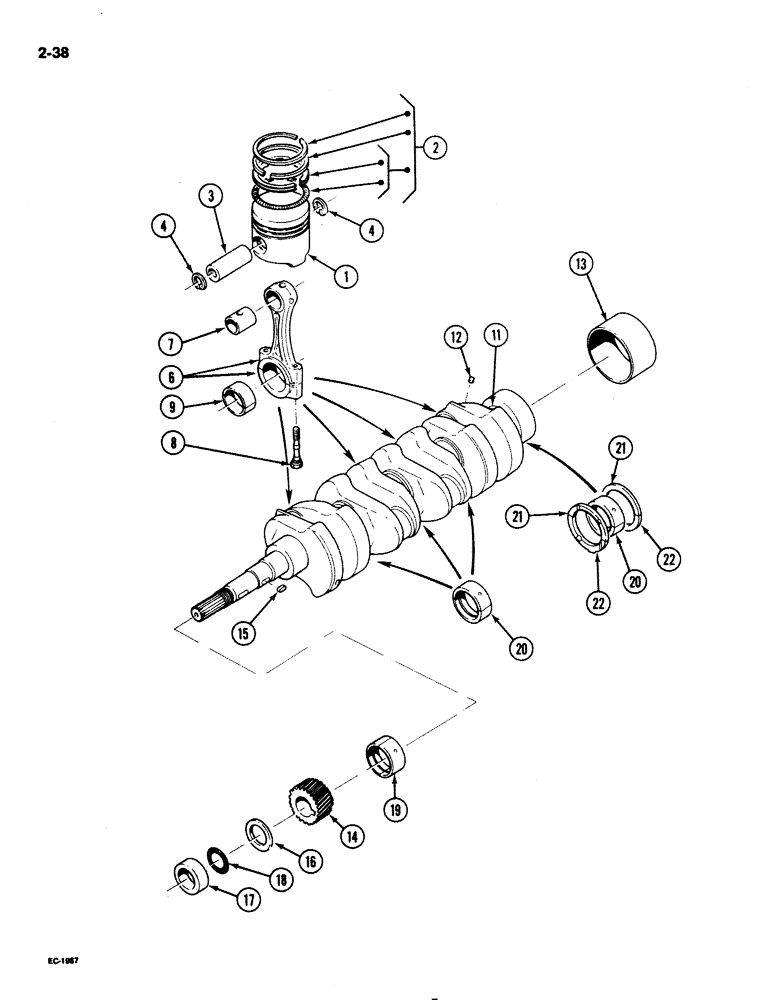

Запчасти Case 1825 (2-38) - PISTONS AND CRANKSHAFT, DIESEL MODELS (02) - ENGINE

1

1959345C1

PISTON

standard

4шт.

2

1959346C1

RING, SET

RING SET piston

4шт.

3

1959347C1

PISTON PIN

PIN piston

4шт.

4

1959348C1

CIRCLIP

RING snap, piston pin

8шт.

1959349C1

ROD, CONNECTING

ROD ASSEMBLY connecting, Includes: Ref. 6 - 9

4шт.

6

NSS

NOT SOLD SEPARAT

ROD connecting, order connecting rod assembly 1959349C1

4шт.

7

1959351C1

BUSHING

piston pin

4шт.

8

1959352C1

BOLT

connecting rod, M7 x 42 mm

8шт.

9

1959353C1

BEARING

crank pin

8шт.

1959358C1

CRANKSHAFT

ASSEMBLY engine, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT engine

1шт.

12

1959356C1

PLUG

pin

1шт.

13

1959357C1

SLEEVE

crankshaft

1шт.

14

1959360C1

GEAR

crankshaft

1шт.

15

1959306C1

KEY

feather

1шт.

16

1959361C1

WASHER

DISC crankshaft

1шт.

17

1959362C1

COLLAR

crankshaft

1шт.

18

1959363C1

O-RING

crankshaft

1шт.

19

1959364C1

CRANKSHAFT BEARING,48 mm ID x 18 mm

BEARING main crankshaft 1

1шт.

20

1959365C1

CRANKSHAFT BEARING

BEARING main crankshaft 2

8шт.

21

1959366C1

THRUST PLATE

PLATE bearing thrust side 1

2шт.

22

1959367C1

BLOCK

PLATE bearing thrust side 2

2шт.
