(2-32) - FRONT GEAR COVER, DIESEL MODELS

Запчасти Case 1825 (2-32) - FRONT GEAR COVER, DIESEL MODELS (02) - ENGINE

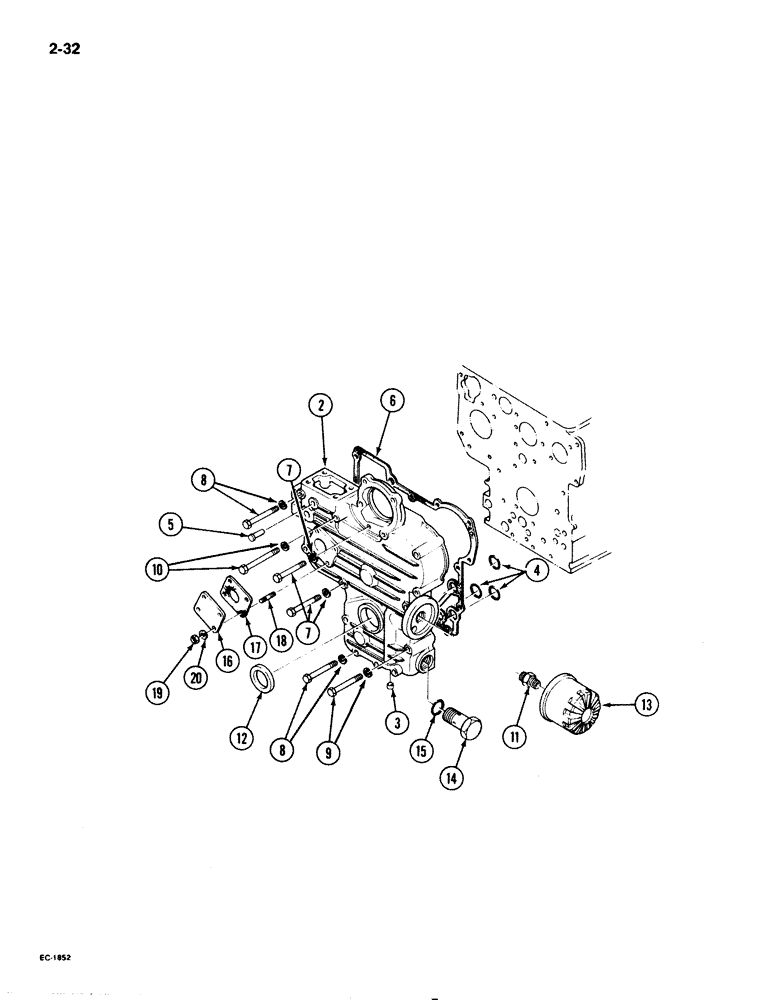

Схема запчастей Case 1825 - (2-32) - FRONT GEAR COVER, DIESEL MODELS (02) - ENGINE
19
12
18
8
10
20
16
17
9
5
7
15
3
8
2
11
6
4
14
7
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1959186C1

COVER

ASSEMBLY gear, front, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

COVER, gear, order cover assembly 1959186C1

1шт.

3

1959188C1

PLUG

cover

2шт.

4

1959189C1

O-RING

cover

3шт.

5

1959190C1

PIN

start spring

1шт.

6

1959191C1

GASKET

gear case

1шт.

7

1959192C1

BOLT

with lock washer

6шт.

8

1959193C1

BOLT

with lock washer

6шт.

9

1959194C1

BOLT

with lock washer

1шт.

10

1959195C1

BOLT

with lock washer

1шт.

11

1959196C1

FITTING

ADAPTER filter

1шт.

12

1959197C1

OIL SEAL

oil

1шт.

13

1959198C1

FILTER, ENGINE OIL

CARTRIDGE oil filter

1шт.

14

1959199C1

VALVE

ASSEMBLY relief, internal component parts not serviced separately, Includes: Ref. 15

1шт.

15

1959201C1

O-RING

valve

1шт.

16

1959202C1

PLATE

COVER gear case

1шт.

17

1959203C1

GASKET

hourmeter

1шт.

18

1959204C1

STUD

cover, M6 x 28 mm

4шт.

19

1959205C1

NUT

cover stud, M6

4шт.

20

1959206C1

SPRING WASHER

lock

1шт.
