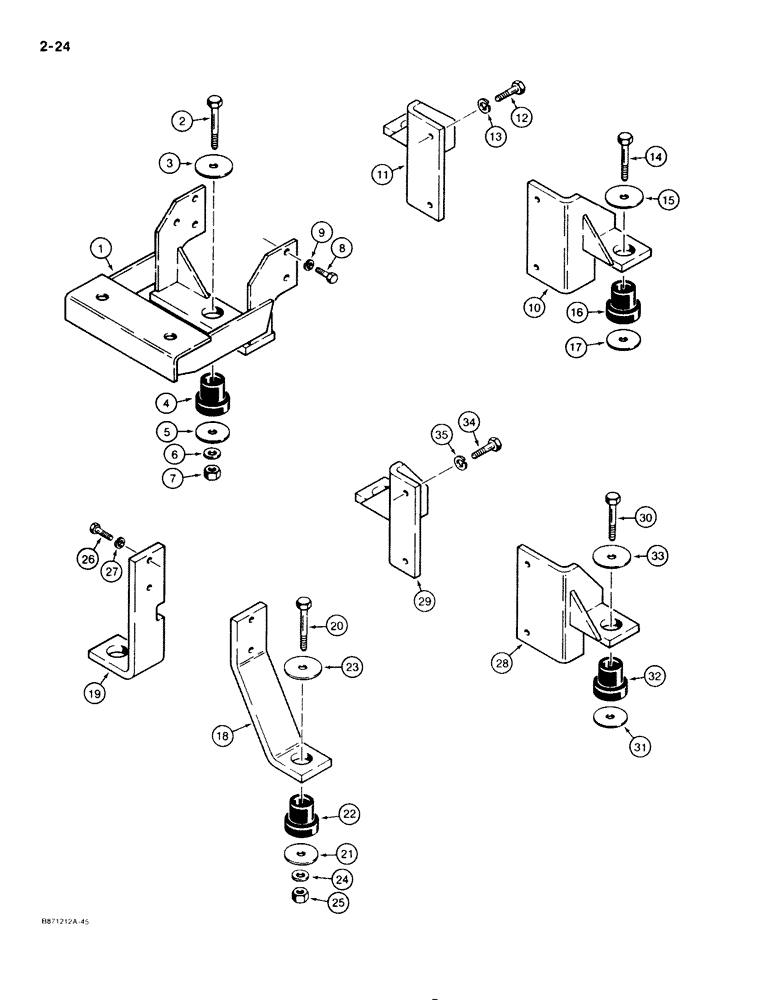

Запчасти Case 1825 (2-24) - ENGINE MOUNTING (02) - ENGINE

1

D137174

SUPPORT

engine mounting, rear

1шт.

2

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

3

195-2055

WASHER,17/32" x 2 1/4" x .180"

flat, 1/2" bolt side, 17/32" ID x 2 1/4" OD x 3/16" thick

1шт.

4

D137185

MOUNTING PARTS

INSULATOR engine mount, rubber

1шт.

5

195-2068

WASHER,0.56" ID x 2" OD x 0.07" Thk

flat, 1/2" bolt size, 9/16" ID x 2" OD x 1/16" thick

1шт.

6

195-106

WASHER,1/2"

flat, plated, 1/2"

1шт.

7

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

8

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

4шт.

10

D138185

MOUNTING PARTS

MOUNT engine, right hand front

1шт.

11

D138186

MOUNTING PARTS

MOUNT engine, left hand front

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

hex head, plated, 1/2" 13 NC x 2 1/2"

2шт.

15

195-2055

WASHER,17/32" x 2 1/4" x .180"

flat, 1/2" bolt size, 17/32" ID x 2 1/4" OD x 3/16" thick

2шт.

16

D137185

MOUNTING PARTS

INSULATOR engine mount

2шт.

17

195-2068

WASHER,0.56" ID x 2" OD x 0.07" Thk

flat, 1/2" bolt size, 9/16" ID x 2" OD x 1/16" thick

2шт.

18

D139458

ANGLE

BRACKET engine mount, right hand rear

1шт.

19

D139459

ANGLE

BRACKET engine mount, left hand rear

1шт.

20

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

21

195-2068

WASHER,0.56" ID x 2" OD x 0.07" Thk

flat, 1/2" bolt size, 9/16" ID x 2" OD x 1/16" thick

2шт.

22

D137185

MOUNTING PARTS

INSULATOR engine mount

2шт.

23

195-2055

WASHER,17/32" x 2 1/4" x .180"

flat, 1/2" bolt size, 17/32" ID x 2 1/4" OD x 3/16" thick

2шт.

24

195-106

WASHER,1/2"

flat, plated, 1/2"

2шт.

25

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

26

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex head, plated, 8 mm x 1.25 x 25 mm, 8.8

4шт.

27

892-1108

LOCK WASHER,M8

plated M8

4шт.

28

D138191

MOUNTING PARTS

MOUNT engine, right hand front

1шт.

29

D138192

MOUNTING PARTS

MOUNT engine, left hand front

1шт.

30

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

hex head, plated, 1/2" 13 NC x 2 1/2"

2шт.

31

195-2068

WASHER,0.56" ID x 2" OD x 0.07" Thk

flat, 1/2" bolt size, 9/16" ID x 2" OD x 1/16" thick

2шт.

32

D137185

MOUNTING PARTS

INSULATOR engine mount

2шт.

33

195-2055

WASHER,17/32" x 2 1/4" x .180"

flat, 1/2" bolt size, 17/32" ID x 2 1/4" OD x 3/16" thick

2шт.

34

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
