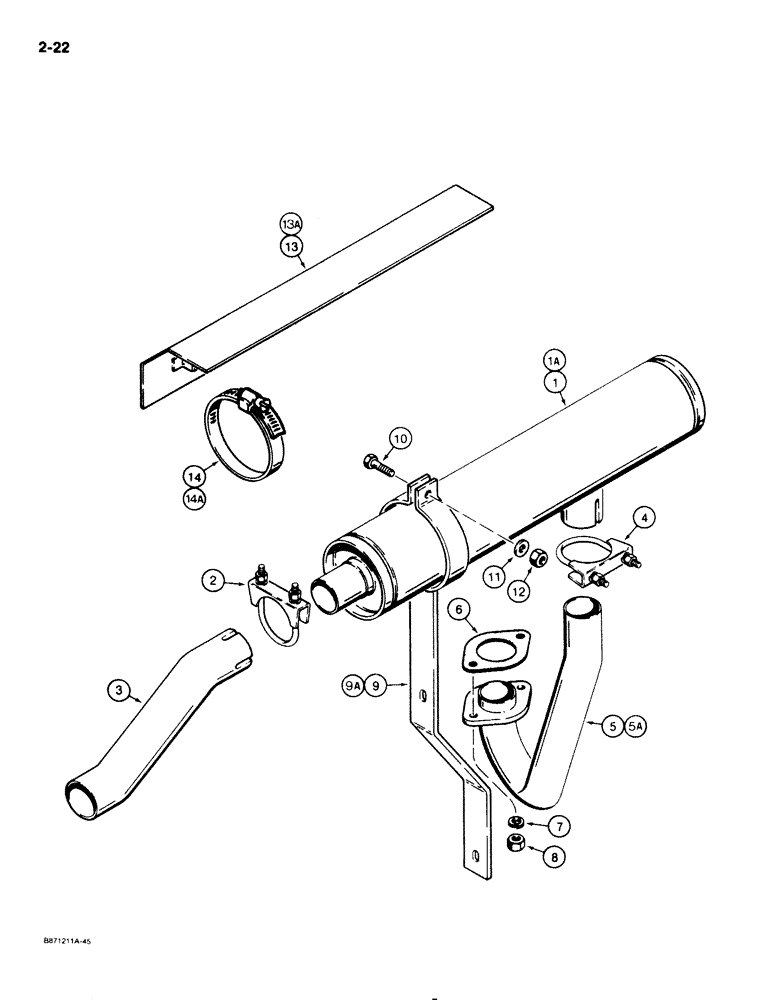

Запчасти Case 1825 (2-22) - MUFFLER AND EXHAUST SYSTEM, GASOLINE MODELS (02) - ENGINE

1

A184808

MUFFLER

exhaust, standard

1шт.

1a

A184704

MUFFLER

exhaust, spark arrester

1шт.

2

D58859

CLAMP

muffler to exhaust extension, includes hardware

1шт.

3

E99978

PIPE, EXHAUST SYSTEM

EXTENSION muffler exhaust

1шт.

4

L13452

CLAMP,195-3/8" L

exhaust pipe, includes hardware

1шт.

5

E20195

PIPE, EXHAUST SYSTEM

PIPE exhaust, from engine to standard muffler

1шт.

5a

E20391

PIPE, EXHAUST SYSTEM

PIPE exhaust, from engine to spark arrester muffler

1шт.

6

D137045

GASKET

exhaust pipe

1шт.

7

892-1108

LOCK WASHER,M8

plated M8

2шт.

8

825-1108

NUT,Hex, M8, Cl 8

hex, plated, 8 mm 1.25

2шт.

9

D139177

CLAMP

SUPPORT standard muffler

1шт.

9a

E20393

SUPPORT

spark arrester muffler

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

12

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self locking, plated, 5/16" 18 NC

1шт.

13

D137087

GUARD

SHIELD heat, standard muffler

1шт.

13a

E20389

SHIELD

heat, spark arrester muffler

1шт.

14

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP muffler to heat shield, standard muffler

2шт.

14a

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP spark arrester muffler to heat shield

2шт.
