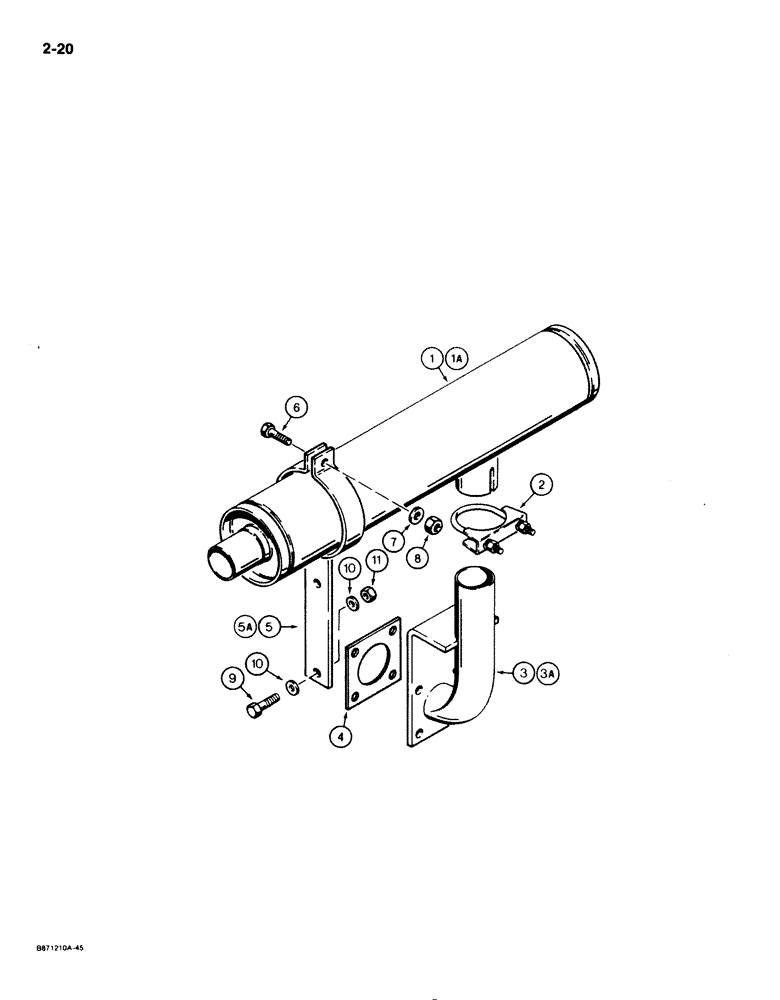

Запчасти Case 1825 (2-20) - MUFFLER AND EXHAUST SYSTEM, DIESEL MODELS (02) - ENGINE

1

A184808

MUFFLER

exhaust, standard

1шт.

1a

A184704

MUFFLER

exhaust, spark arrester

1шт.

2

L13452

CLAMP,195-3/8" L

exhaust pipe, includes hardware

1шт.

3

D135119

PIPE

exhaust, from engine to standard muffler

1шт.

3a

E20323

PIPE, EXHAUST SYSTEM

PIPE exhaust, engine to spark arrester muffler, use D135119

1шт.

4

D136145

GASKET

exhaust pipe

1шт.

5

D139178

CLAMP

SUPPORT standard muffler

1шт.

5a

E20321

CLAMP

SUPPORT spark arrester muffler, use D139178

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

8

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self locking, plated, 5/16" 18 NC

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

195-103

WASHER,5/16"

flat, plated, 5/16"

2шт.

11

131-651

NUT,5/16"-18, GB

NUT hex, self locking, 5/16" 18 NC

1шт.
