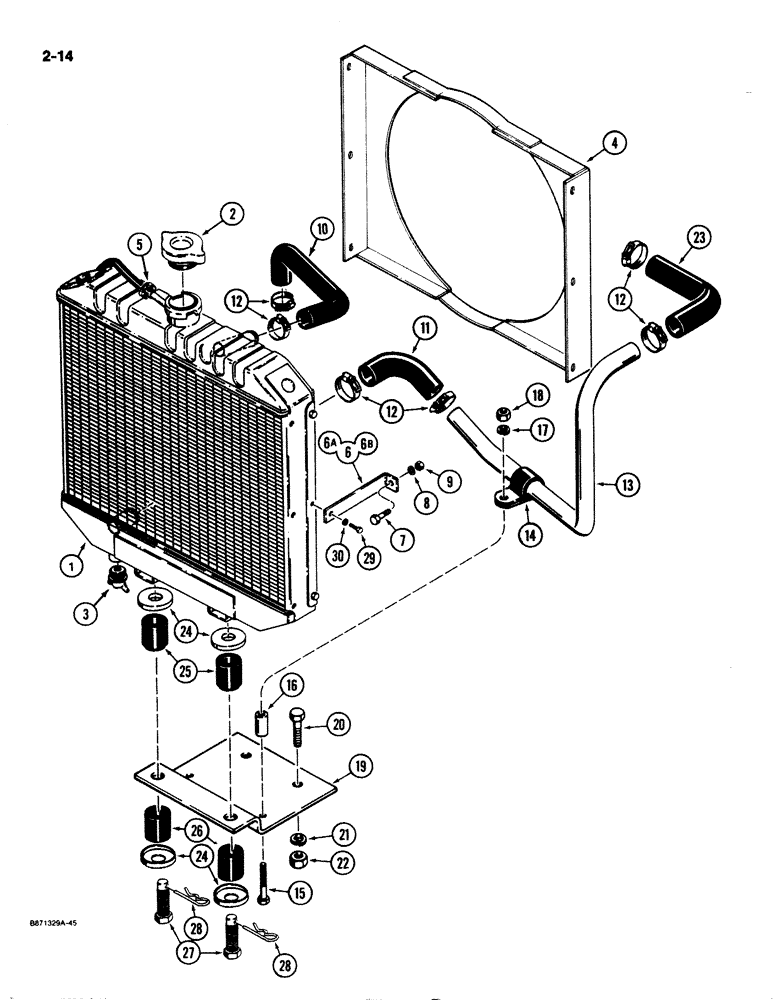

Запчасти Case 1825 (2-14) - RADIATOR AND MOUNTING PARTS, GASOLINE MODELS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A173836
RADIATOR
engine cooling, Includes: Ref. 2 - 4
1шт.
2
A184964
FILLER CAP
CAP radiator
1шт.
3
A184965
COCK, DRAIN
VALVE drain
1шт.
4
A184702
SHROUD
fan
1шт.
5
163135H1
CLAMP,7/16", 3/8" Bolt
overflow pipe
2шт.
6
D137449
SUPPORT
BRACKET radiator mounting, right hand, standard muffler
1шт.
6a
E20255
BRACKET
radiator mounting, left hand
1шт.
6b
E20388
BRACKET
radiator mounting, right hand, spark arrester muffler
1шт.
7
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
8
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
9
9635082
NUT,5/16" - 18, Gr 5
2шт.
10
D136885
HOSE,26.50 mm ID x 233.00 mm, SAE 20R4
RADIATOR HOSE, , Upper 26.50 mm ID x 233.00 mm, SAE 20R4
1шт.
11
D136886
TUBE
HOSE lower, at radiator
1шт.
12
214-257
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
6шт.
13
D136887
HOSE
TUBE lower
1шт.
14
R14668
CLAMP
tube
1шт.
15
113-110
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Hex, 5/16"-18 x 2 1/4", G5
1шт.
16
D123485
SPACER
tube to mounting plate
1шт.
17
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
18
9635082
NUT,5/16" - 18, Gr 5
1шт.
19
D136888
BRACKET
PLATE radiator mounting
1шт.
20
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
21
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
22
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
23
A173838
RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20
25.00 mm ID, SAE 20R4 per SAE J20, at Engine
1шт.
24
1959244C1
CUP WASHER
special
4шт.
25
1959242C1
HITCH DAMPER
INSULATOR rubber, upper
2шт.
26
1959243C1
HITCH DAMPER
INSULATOR rubber, lower
2шт.
27
1959241C1
BOLT
special
2шт.
28
1959245C1
LINCH PIN
PIN hair, bolt
2шт.
29
814-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
hex head, plated, 6 mm 1 x 16 mm, 8.8
2шт.
30
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
Выбрано товаров: 32
