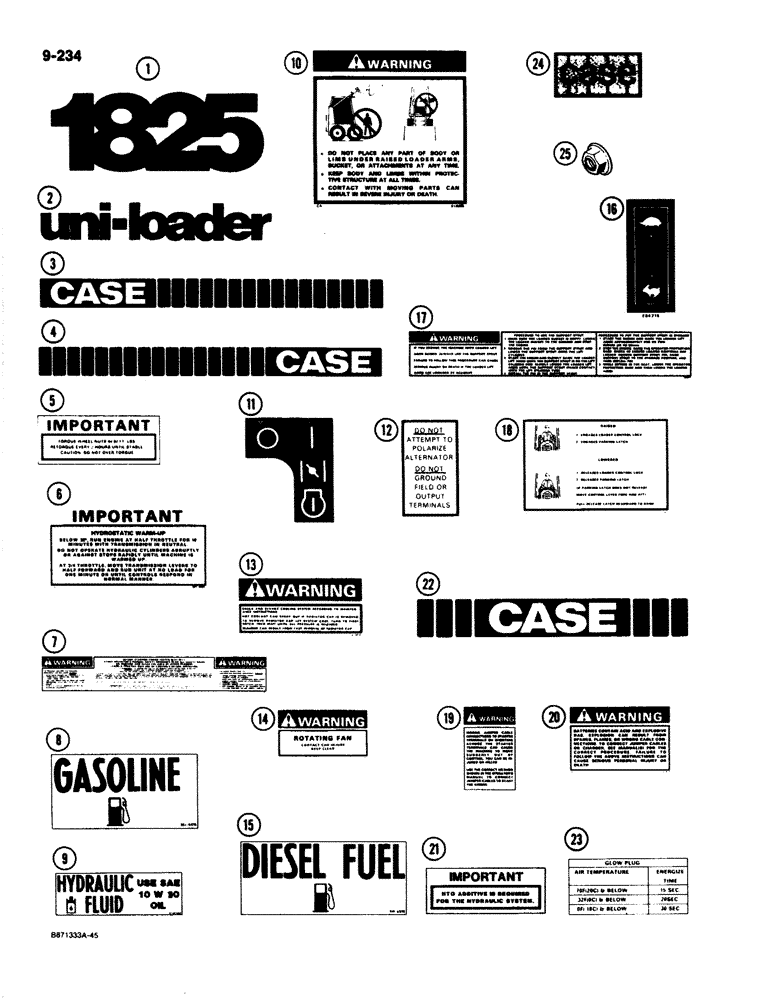

Запчасти Case 1825 (9-234) - DECALS, GERMAN (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT decal, released when available

1шт.

1

D139184

DECAL

1825

2шт.

2

D123964

DECAL

Uni Loader, brown

2шт.

3

D139485

DECAL

Case, left hand

1шт.

4

D139486

DECAL

Case, right hand

1шт.

5

321-3617

DECAL

Important, torque wheel nuts

2шт.

6

E84676

DECAL

Important, hydrostatic warm up

1шт.

7

321-6621

DECAL

Warning, before starting engine, fasten seat belt

1шт.

8

E20022

DECAL

gasoline

1шт.

9

E20164

DECAL

hydraulic fluid, use SAE 10 W 30 oil

1шт.

10

321-6654

DECAL

Warning, do not place any part of body

1шт.

11

D124209

DECAL

ignition switch

1шт.

12

321-3460

DECAL

Do Not Attempt to Polarize Alternator

1шт.

13

321-6795

DECAL

Warning, check and service cooling system

1шт.

14

321-6791

DECAL

Warning, rotating fan

1шт.

15

E84620

DECAL

diesel fuel

1шт.

16

E84716

DECAL

throttle

1шт.

17

321-6794

DECAL

Warning, if you service the machine with loader lift arms raised

1шт.

18

D136508

DECAL

parking latch and operator restraints

1шт.

19

321-6725

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

20

321-6724

DECAL

Warning, batteries contain acid and explosive gas

1шт.

21

E20018

DECAL

Important, HTO additive is required for the hydraulic system

1шт.

22

D124236

DECAL

case, rear door

1шт.

23

E20108

DECAL

glow plug, operating instructions

1шт.

24

321-4739

EMBLEM

Case, on grille

1шт.

25

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on type, plated, 1/4"

2шт.

30

E20141

DECAL

REFLECTOR left hand used on TBG, not shown

1шт.

31

E20142

DECAL

REFLECTOR right hand, used on TBG, not shown

1шт.

32

321-2299

DECAL

Warning, engine access, used on TBG, not shown

1шт.

33

321-6181

DECAL

Warning, loader lift arm strut, used on TBG, not shown

2шт.

34

321-4038

DECAL

Warning, operator exit, used on TBG, not shown

1шт.
