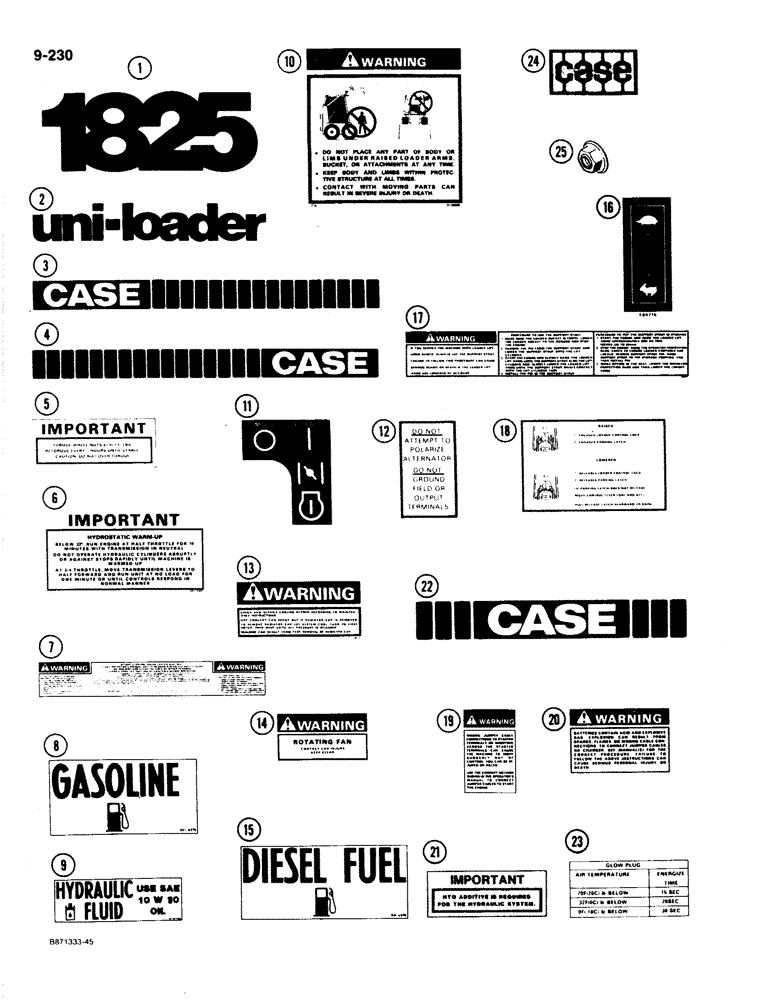

Запчасти Case 1825 (9-230) - DECALS, ENGLISH (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT decal, released when available

1шт.

1

D139184

DECAL

1825

2шт.

2

D123964

DECAL

Uni Loader, brown

2шт.

3

D139485

DECAL

Case, left hand

1шт.

4

D139486

DECAL

Case, right hand

1шт.

5

321-2973

DECAL

Important, torque wheel nuts

2шт.

6

321-4197

DECAL

Important, hydrostatic warm up

1шт.

7

321-6460

DECAL

Warning, before starting engine, fasten seat belt

1шт.

8

321-6375

DECAL

gasoline

1шт.

9

H434891

DECAL

hydraulic fluid, use SAE 10 W 30 oil

1шт.

10

D120889

DECAL

Warning, do not place any part of body

1шт.

11

D124209

DECAL

ignition switch

1шт.

12

321-1061

DECAL

Do Not Attempt to Polarize Alternator

1шт.

13

321-6672

DECAL

Warning, check and service cooling system

1шт.

14

321-6686

DECAL

Warning, rotating fan

1шт.

15

321-6374

DECAL

diesel fuel

1шт.

16

E84716

DECAL

throttle

1шт.

17

D134678

DECAL

Warning, if you service the machine with loader lift arms raised

1шт.

18

D134679

DECAL

parking latch and operator restraints

1шт.

19

321-6718

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

20

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

21

H435037

DECAL

Important, HTO additive is required for the hydraulic system

1шт.

22

D124236

DECAL

Case, rear door

1шт.

23

H435049

DECAL

glow plug, operating instructions

1шт.

24

321-4739

EMBLEM

Case, on grille

1шт.

25

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on type, 1/4" plated

2шт.
