(9-224) - BYSTANDER NOISE KIT, FRENCH MODELS ONLY

Запчасти Case 1825 (9-224) - BYSTANDER NOISE KIT, FRENCH MODELS ONLY (09) - CHASSIS/ATTACHMENTS

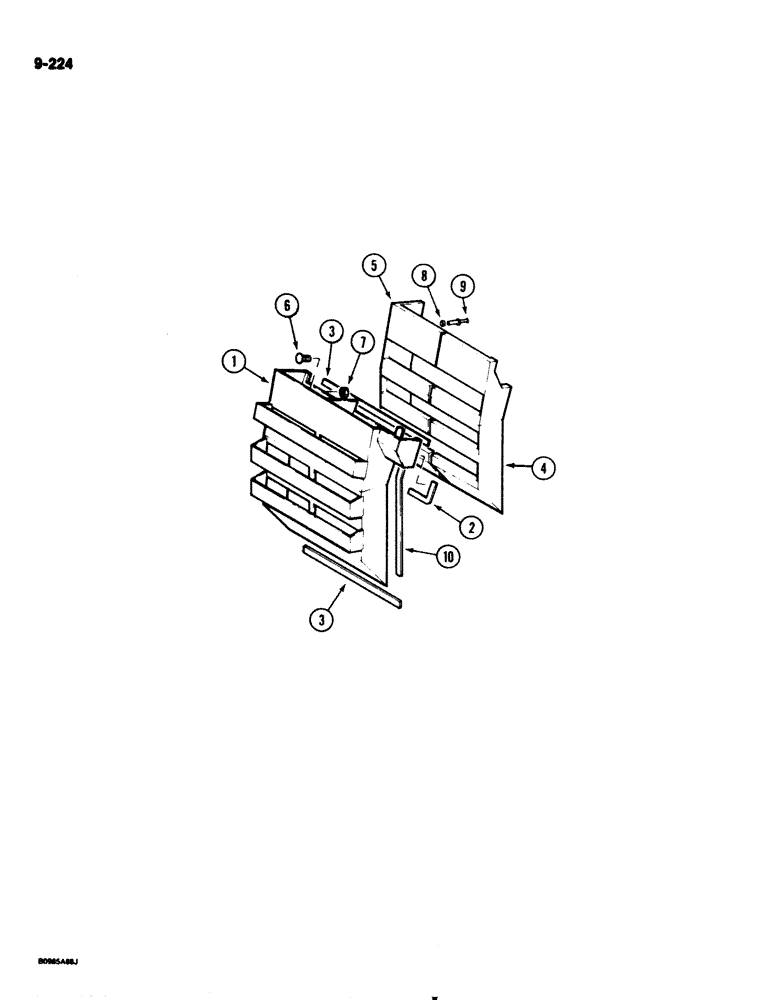

Схема запчастей Case 1825 - (9-224) - BYSTANDER NOISE KIT, FRENCH MODELS ONLY (09) - CHASSIS/ATTACHMENTS
3
1
7
8
4
6
5
3
2
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E20004

BAFFLE

rear door

1шт.

2

E99941

SEALING STRIP

SEAL weatherstrip

1шт.

3

E20002

SEALING STRIP

STRIP sealing, cover

2шт.

4

E20092

INSULATOR

PAD grille, left hand

1шт.

5

E20093

INSULATOR

PAD grille, right hand

1шт.

6

E98067

SCREW

BOLT carriage, special

4шт.

7

E98788

LOCK NUT

hex, special

4шт.

8

195-2251

WASHER,.281" x 1" x .109"

flat, 3/16" bolt size, plated, 9/32" ID x 1" OD x 1/8" thick

12шт.

9

151-522

RIVET,Pop, 3/16" x .575"

pop, 3/16" x 17/32"

12шт.

10

E20284

SEALING STRIP

STRIP sealing, cover

2шт.
