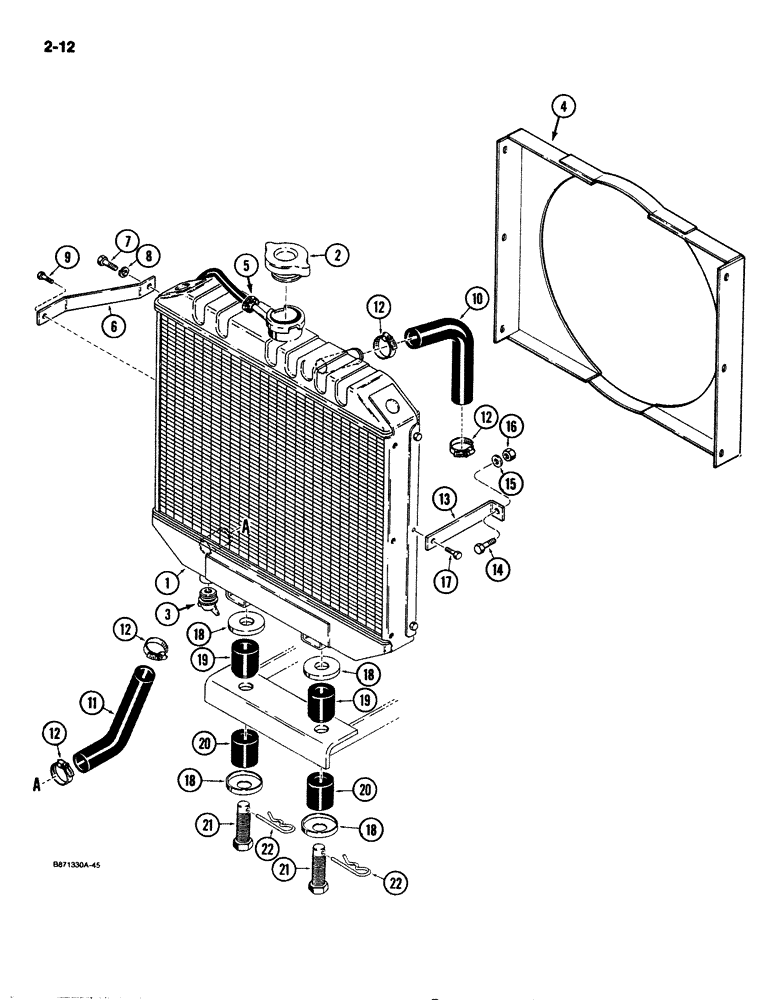

Запчасти Case 1825 (2-12) - RADIATOR AND MOUNTING PARTS, DIESEL MODELS (02) - ENGINE

1

A173836

RADIATOR

engine cooling, Includes: Ref. 2 - 4

1шт.

2

A184964

FILLER CAP

CAP radiator

1шт.

3

A184965

COCK, DRAIN

VALVE drain

1шт.

4

A184942

SHROUD

fan

1шт.

5

163135H1

CLAMP,7/16", 3/8" Bolt

overflow pipe

2шт.

6

D139580

SUPPORT

BRACKET radiator support, left hand side only

1шт.

7

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm 1.25 x 16 mm, 8.8

1шт.

8

892-1108

LOCK WASHER,M8

plated M8

1шт.

9

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

hex head, plated, 6 mm 1 x 16 mm, 8.8

1шт.

10

A173838

RADIATOR HOSE,25.00 mm ID x 126.00 mm, SAE 20R4 CLASS C, PER SAE J20

25.00 mm ID, SAE 20R4 per SAE J20, Upper

1шт.

Connects to Thermostat - See Fig. 2-44 Ref.#11

1шт.

11

A173839

PIPE

HOSE lower

1шт.

Connects to Water Pump - See Fig. 2-44

1шт.

12

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

13

E20126

SUPPORT

BRACKET radiator mounting, right hand side only

1шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex head, plated, 5/16" NC x 3/4"

1шт.

15

195-103

WASHER,5/16"

flat, plated, 5/16"

1шт.

16

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" 18 NC

1шт.

17

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

hex head, plated, 6 mm 1 x 16 mm, 8.8

1шт.

18

1959244C1

CUP WASHER

special

4шт.

19

1959242C1

HITCH DAMPER

INSULATOR rubber, upper

2шт.

20

1959243C1

HITCH DAMPER

INSULATOR rubber, lower

2шт.

21

1959241C1

BOLT

special

2шт.

22

1959245C1

LINCH PIN

PIN hair, bolt

2шт.
