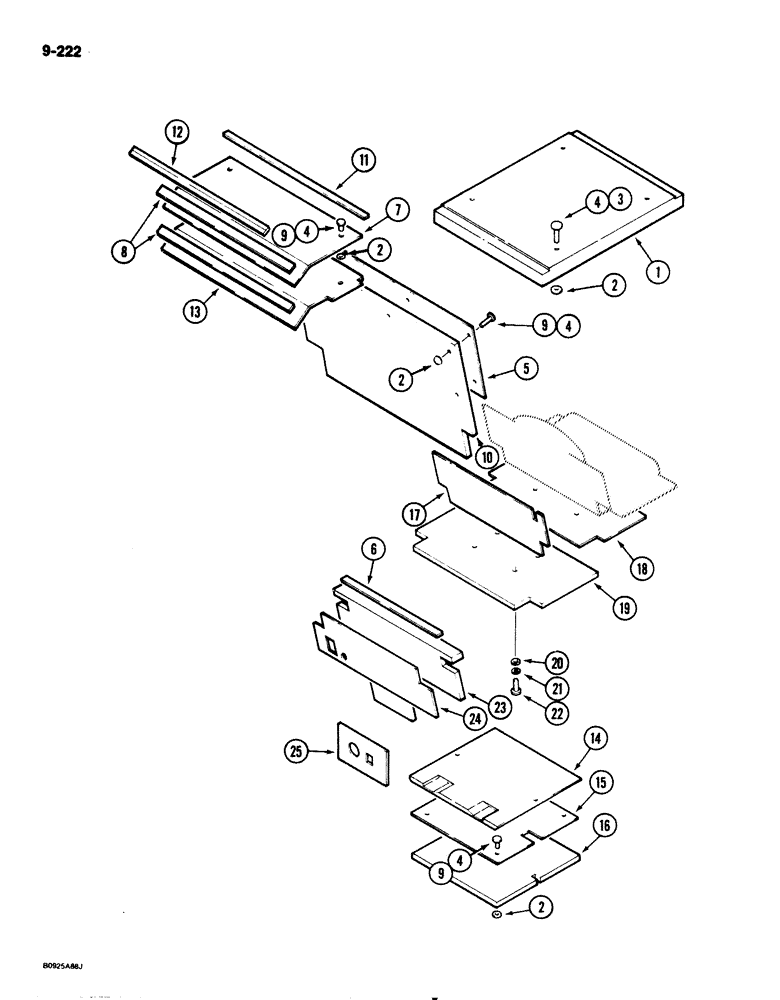

Запчасти Case 1825 (9-222) - DELUXE NOISE KIT (09) - CHASSIS/ATTACHMENTS

1

E99954

INSULATOR

LINER roof interior

1шт.

Ref #1 Replaced by E20649 Screw In Line Requires (4) E20617 Screws, (4) E20618 Washers (4) 825-1105 Nuts.

1шт.

2

E99641

CAP

bonded fastener

18шт.

3

E99640

FASTENER

bonded, 50 mm long

4шт.

4

E99794

TAPE

self adhesive, 1 inch wide

18шт.

5

E99949

PANEL

PAD engine fire wall, inner

1шт.

6

E20244

STRIP

retaining, special

1шт.

7

E99956

PAD

engine cover, upper

1шт.

8

E20248

STRIP

retaining, special

1шт.

9

E99639

FASTENER

bonded, 20 mm long

8шт.

10

E20168

INSULATOR

PAD engine firewall, outer

1шт.

11

E20245

SEALING STRIP

STRIP sealing, engine cover

1шт.

12

E20246

SEALING STRIP

EDGE protection, engine top cover and rear door

2шт.

13

E20243

INSULATOR

PAD engine cover, lower

1шт.

14

E20167

FLOOR MAT

PAD floor plate, upper

1шт.

15

E20174

PAD

floor plate, center

1шт.

16

E20173

PANEL

PAD floor plate, lower

1шт.

17

E20169

PAD

seat plate, back

1шт.

18

E20170

PAD

seat plate, upper

1шт.

19

E20171

INSULATOR

PAD seat plate, lower

1шт.

20

195-528

WASHER,3/8"

flat, plated, 3/8"

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

4шт.

23

E20172

INSULATOR

PAD heel plate, inner

1шт.

24

E99951

PAD

heel plate, center

1шт.

25

E99950

PAD

heel plate, outer

1шт.
