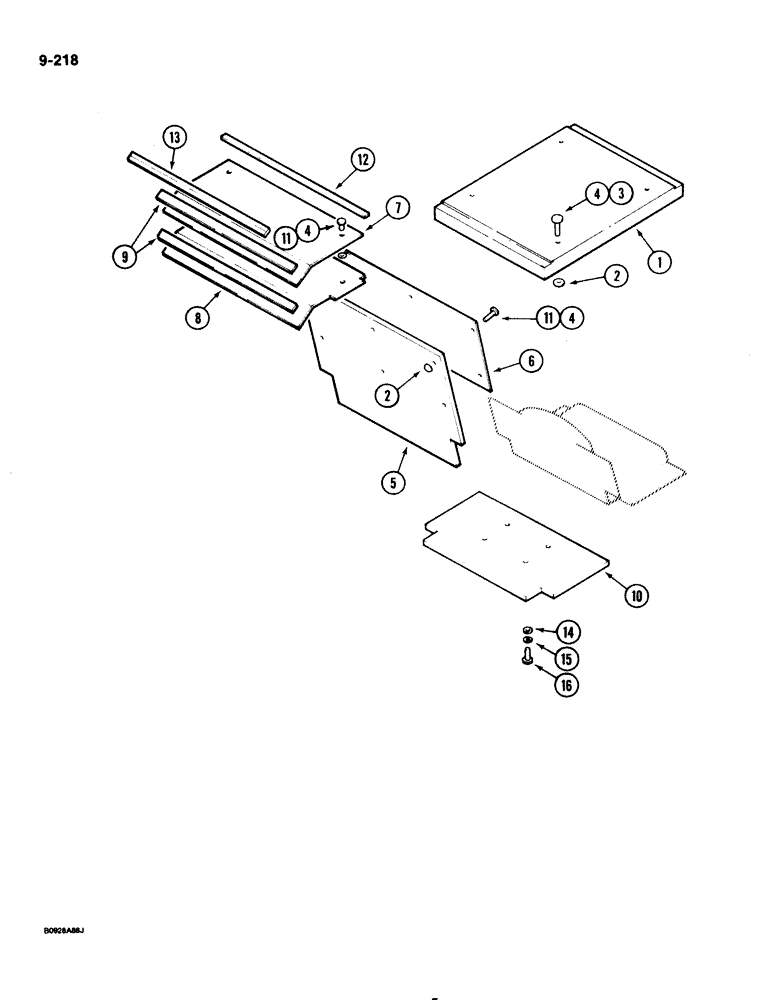

Запчасти Case 1825 (9-218) - STANDARD NOISE KIT, GASOLINE MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

E99954

INSULATOR

LINER roof interior

1шт.

Ref #1 Replaced by E20649 Screw In Line Requires (4) E20617 Screws, (4) E20618 Washers (4) 825-1105 Nuts.

1шт.

2

E99641

CAP

bonded fastener

12шт.

3

E99640

FASTENER

bonded, 50 mm long

4шт.

4

E99794

TAPE

self adhesive, 1 inch wide

12шт.

5

E99958

INSULATOR

PAD engine fire wall, outer

1шт.

6

E99949

PANEL

PAD engine fire wall, inner

1шт.

7

E99956

PAD

engine cover, upper

1шт.

8

E99955

INSULATOR

PAD engine cover, lower

1шт.

9

E20248

STRIP

retaining, special, 745 mm long

1шт.

10

E99957

INSULATOR

PAD seat mounting plate

1шт.

11

E99639

FASTENER

bonded, 20 mm long

8шт.

12

E20245

SEALING STRIP

STRIP sealing, engine cover

1шт.

13

E20246

SEALING STRIP

EDGE protection, engine top cover and rear door

2шт.

14

195-528

WASHER,3/8"

flat, plated, 3/8"

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

113-2255

BOLT,Hex, 3/8" - 16 x 3-1/8", Gr 5

hex head, 3/8" 16 NC x 1 3/8"

4шт.
