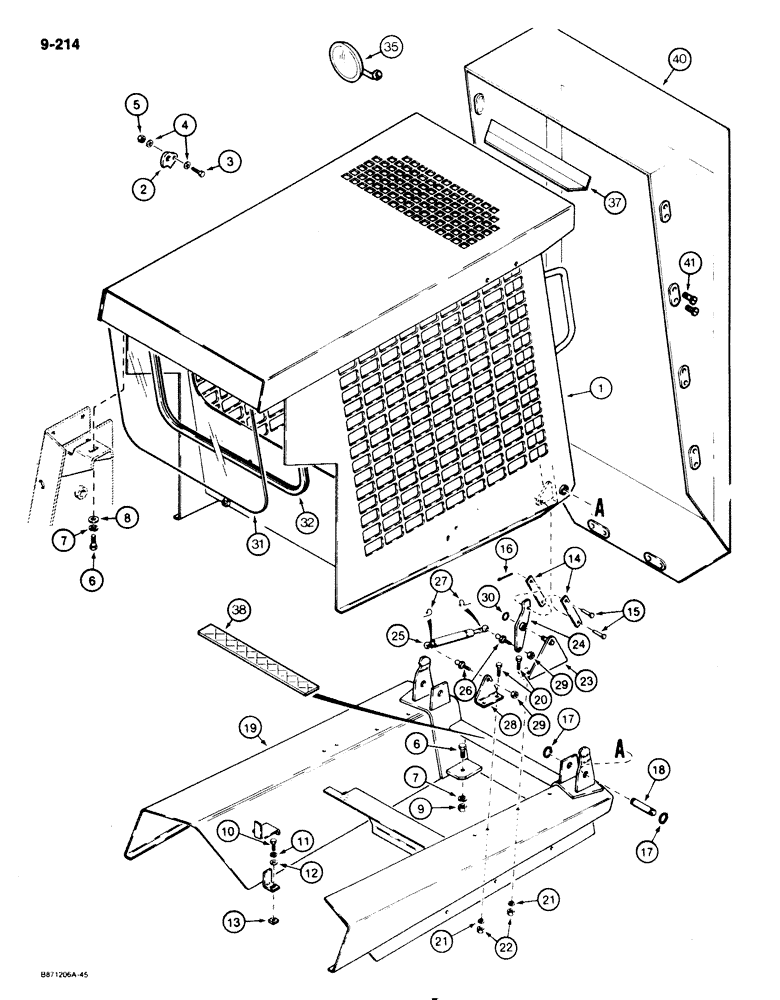

Запчасти Case 1825 (9-214) - ROPS, STANDARD (09) - CHASSIS/ATTACHMENTS

1

D134588

FRAME

ROPS canopy

1шт.

1

E20206

CAB

FRAME ROPS canopy, glazed, see Fig. 9 216

1шт.

2

D120703

LATCH

locking

1шт.

3

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

4

195-102

WASHER,1/4"

flat, plated, 1/4"

2шт.

5

86625061

NUT,1/4"-20, GB

NUT hex, self locking, plated, 1/4" 20 NC

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

195-533

WASHER,1/2", SAE

flat, plated, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

2шт.

13

25-285

SQUARE NUT,Sq, 5/16"-18

square, heavy, 5/16" 18 NC

2шт.

14

D120691

LINK

bellcrank to ROPS frame

4шт.

15

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

4шт.

16

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

4шт.

17

T25683

SNAP RING,#75, Ext

Ring, Snap, , pivot pin #75, Ext

4шт.

18

D120704

PIN,19.05mm OD x 88mm L

pivot

2шт.

19

D135071

FRAME

operators compartment

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

22

9635082

NUT,5/16" - 18, Gr 5

8шт.

23

D120686

BRACKET

bellcrank

2шт.

24

D120692

CRANK

BELLCRANK spring cylinder

2шт.

D120660

GAS STRUT

CYLINDER ASSEMBLY gas spring

2шт.

25

NSS

NOT SOLD SEPARAT

CYLINDER gas spring

1шт.

26

F44882

BALL

STUD ball, cylinder

2шт.

27

F44883

CLIP,DIN 71805 - S10

lock, ball stud

2шт.

28

D120689

BRACKET

cylinder mounting

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

A11538

SNAP RING,#50, Ext

Ring, Snap, , bellcrank #50, Ext

2шт.

31

E20209

GLASS

rear, optional

1шт.

32

E20211

SEALING STRIP

CHANNEL glazing, 85 5/8", 2175 mm, long

1шт.

35

E99967

REAR VIEW MIRROR

MIRROR 110 mm convex, TBG, Germany

1шт.

37

E20238

PAD

head protection, TBG, Germany

1шт.

38

E202157

PAD

non slip center support, TBG, Germany

1шт.

40

E20247

CURTAIN

COVER roll up, plastic, optional

1шт.

41

187-321

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1/2"

SCREW round head, self tapping, No. 8 x 1/2"

20шт.

E20869

CYLINDER, GAS

ASSY.

1шт.

23a

E20863

BRACKET

BELLCRANK

1шт.

24a

E20985

CLEVIS

YOKE

1шт.
