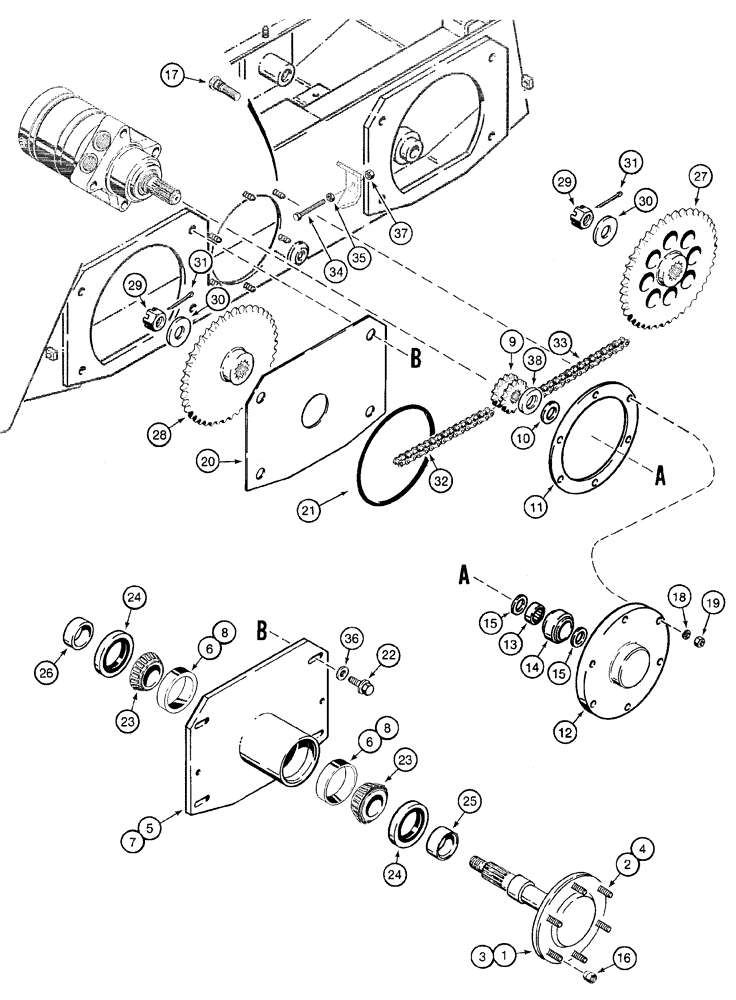

Запчасти Case 1825 (6-18) - AXLES AND DRIVE CHAINS, USED BEFORE P.I.N. JAF0096515 (06) - POWER TRAIN

D121412

AXLE

ASSEMBLY - wheel, Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

AXLE - wheel

1шт.

2

H435130

WHEEL BOLT

BOLT - wheel, special, 1/2 inch NF, wheel, was D91709

6шт.

D121413

AXLE

ASSEMBLY - wheel, Includes: Ref. 3 and 4

2шт.

3

NSS

NOT SOLD SEPARAT

AXLE - wheel

1шт.

4

H435130

WHEEL BOLT

BOLT - wheel, special, 1/2 inch NF, wheel, was D91709

6шт.

D122290

HUB

ASSEMBLY - axle, Includes: Ref. 5 and 6

2шт.

5

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

6

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD, was A29062

2шт.

D122291

HUB,Assembly

ASSEMBLY - axle, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

HUB - axle

1шт.

8

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD, was A29062

2шт.

9

H435479

DRIVE SPROCKET

SPROCKET - drive

2шт.

10

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

- thrust, drive sprocket

2шт.

11

D136535

GASKET,1.57mm Thk

- bearing housing

2шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - bearing, Includes: Ref. 12 - 15

2шт.

12

D134311

COVER

HOUSING - bearing

1шт.

13

D80554

NEEDLE BEARING CAGE

BEARING - needle, hydraulic motor shaft

1шт.

14

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

BEARING - self-aligning

1шт.

15

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

RETAINER - bearing

2шт.

16

F23214

WHEEL NUT

- wheel, special, wheel

24шт.

17

E20613

BOLT

SPECIAL, WAS D134309 -

1шт.

18

492-11038

LOCK WASHER,3/8"

12шт.

19

425-106

NUT,3/8"-16, Cl 5

12шт.

20

H437288

LARGE PLATE

GASKET - axle

4шт.

21

238-5267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 5, 75 Duro

9-1/4 ID x 1/8 inch wide

4шт.

22

426-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 8

- hex, 1/2 NC x 1-3/8 inch, grade 8

16шт.

23

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING - tapered roller, was A29063

8шт.

24

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

- oil

8шт.

25

D122289

SPACER

- axle, outer

4шт.

26

D134202

SPACER,44.5mm ID x 57.23mm OD x 16mm L

- axle, inner

4шт.

27

D134203

DRIVE SPROCKET

SPROCKET - axle, front

2шт.

28

D135527

DRIVE SPROCKET

SPROCKET - axle, rear

2шт.

29

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF, slotted

4шт.

30

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

- special, 0.1562 inch (3.96 mm) thick, special

4шт.

31

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

4шт.

32

H437277

CHAIN (CE),60H, 62 Links x 19.05mm = 1181.1mm

CHAIN, right rear and left front

2шт.

33

H437276

CHAIN (CE)

CHAIN, right front and left rear

2шт.

34

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

4шт.

35

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC, jam

4шт.

36

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch, special, was D73296

16шт.

37

231-5146

FLANGE NUT,3/8"-16

4шт.

38

H438455

SPACER

- drive sprocket, if used

2шт.
