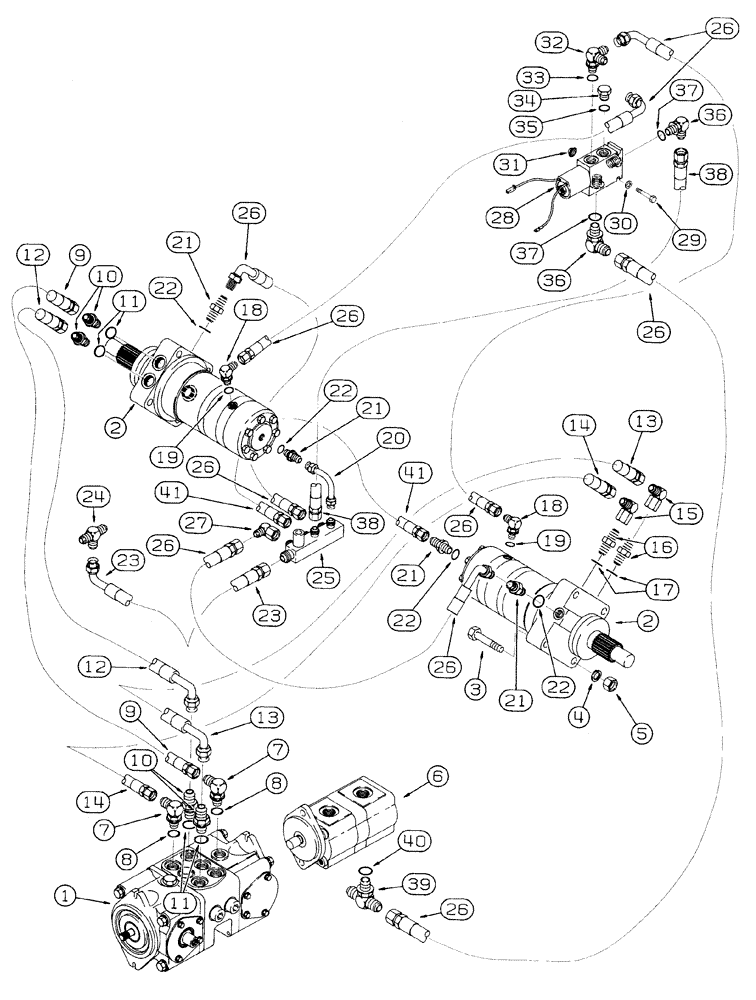

Запчасти Case 1825 (6-16) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, TANDEM PUMP TO HYD. DRIVE MOTORS, EUROPEAN MODELS, P.I.N. (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
142808A2
PUMP
ASSEMBLY - tandem, parts list Fig. 6-04
1шт.
2
135857A1
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - hydraulic drive, parts list Fig. 6-10
2шт.
3
80-1840
12 PT SCREW,Flg, 1/2" - 13 x 2.50", Gr 8
BOLT - 12 point flange, 1/2 NC x 2-1/2 inch, grade 8
8шт.
4
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
8шт.
5
429-108
NUT,1/2"-13, G8
8шт.
6
120882A1
PUMP
ASSEMBLY - hydraulic equipment, parts list Fig. 8-06
1шт.
7
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 8
2шт.
8
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
9
D64000
HOSE
20 inch (508 mm) long, at right-hand front tandem pump port to left-hand hydraulic drive motor
1шт.
10
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 11
2шт.
11
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
12
D135472
HOSE
19-11/16 inch (500 mm) long, at left-hand front tandem pump port to left-hand hydraulic drive motor
1шт.
13
D136895
HOSE
26-9/16 inch (675 mm) long, at left-hand rear tandem pump port to right-hand hydraulic drive motor
1шт.
14
D135258
HOSE
28-17/32 inch (725 mm) long, at front center tandem pump port to right-hand hydraulic drive motor
1шт.
15
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
- 90 degree, 7/8-14 inch flare x swivel
2шт.
16
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 17
2шт.
17
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
18
218-5278
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
- 90 degree, 9/16-18 flare x 7/16-20 inch adj O-ring boss, Incl. Ref. 19
2шт.
19
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
20
D147229
TUBE
right-hand to left-hand motors
1шт.
21
218-5352
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 22
4шт.
22
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
23
132995A1
HOSE
21-1/4 inch (540 mm) long, return
1шт.
24
218-1578
TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br
3/4-16 flare branch x 1-1/16-12 inch flare x flare
1шт.
25
D121814
FITTING
MANIFOLD - adapter
1шт.
26
139534A1
HOSE
13-3/4 inch (349 mm) long
6шт.
27
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
- 90 degree, 9/16-18 inch flare x swivel
1шт.
28
187505C91
VALVE
ASSEMBLY, brake, parts list Fig. 6-12
1шт.
29
413-428
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
2шт.
30
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
2шт.
32
L104616
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB
ELBOW, 90, , Special, Incl. Ref. 33 9/16"-18 x 9/16"-18 ORB
1шт.
34
9625178
PLUG,9/16" - 18 ORB
Incl. Ref. 35 Hex Soc, 9/16"-18 ORB
1шт.
36
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 37
2шт.
33
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
35
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
37
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 37
