Запчасти Case 1825 (6-14) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, TANDEM PUMP TO HYD. DRIVE MOTORS, NORTH AMERICAN MODELS AND (06) - POWER TRAIN

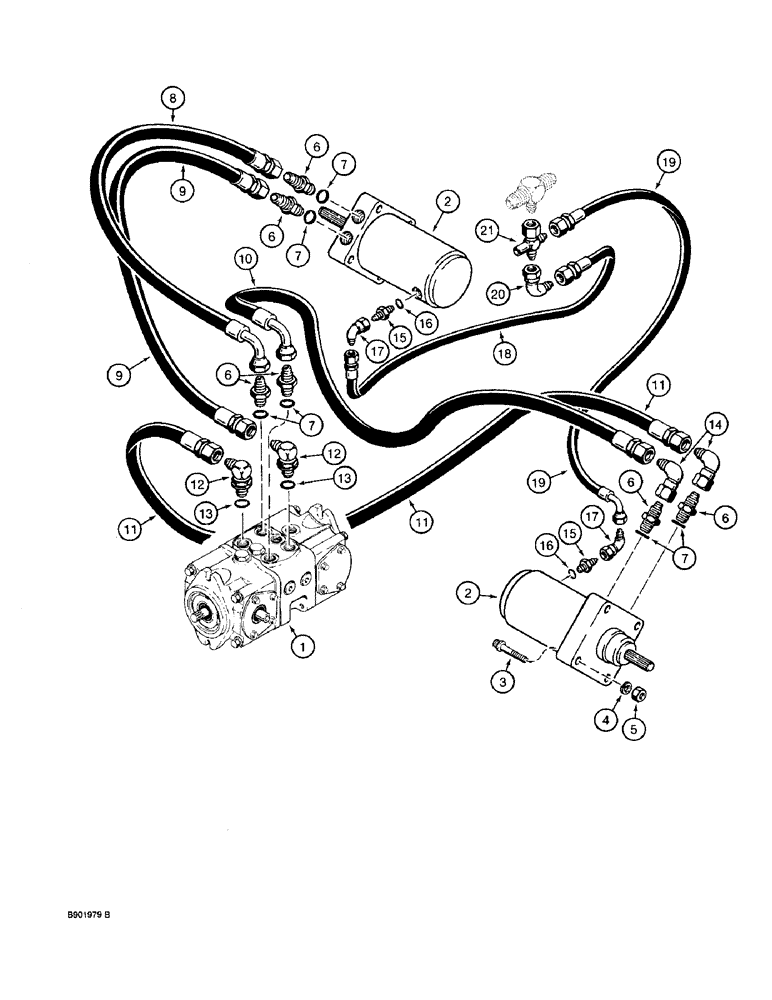

Схема запчастей Case 1825 - (6-14) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, TANDEM PUMP TO HYD. DRIVE MOTORS, NORTH AMERICAN MODELS AND (06) - POWER TRAIN
2
19
4
13
5
9
7
6
6
6
8
6
11
15
19
7
13
10
6
20
16
21
2
16
3
17
12
11
7
17
7
11
18
1
12
14
9
15

Артикул

Название

Примечание

Количество

1

H673523

PUMP

ASSEMBLY - tandem, parts list Fig. 6-04

1шт.

2

H674202

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic drive, parts list Fig. 6-08

2шт.

H674202R

REMAN-HYD MOTOR

1825, S/N JAF0069587 & Aft.

2шт.

H674202C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

3

80-1840

12 PT SCREW,Flg, 1/2" - 13 x 2.50", Gr 8

BOLT - 12 point flange, 1/2 NC x 2-1/2 inch, grade 8

8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

8шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 7

6шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

D135472

HOSE

19-11/16 inch (500 mm) long, at left-hand front tandem pump port to left-hand hydraulic drive motor

1шт.

9

D64000

HOSE

20 inch (508 mm) long, at right-hand front tandem pump port to left-hand hydraulic drive motor (was D136659)

1шт.

10

D135258

HOSE

28-17/32 inch (725 mm) long, at front center tandem pump port to right-hand hydraulic drive motor

1шт.

11

D136895

HOSE

26-9/16 inch (675 mm) long, at left-hand rear tandem pump port to right-hand hydraulic drive motor

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

2шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 16

2шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

18

D89702

HOSE

15 inch (381 mm) long, left-hand hydraulic drive motor to manifold, was D64265

1шт.

19

D135951

HOSE

15-3/4 inch (400 mm) long, manifold to right-hand hydraulic drive motor

1шт.

20

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

21

D121814

FITTING

MANIFOLD - adapter

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 23
