Запчасти Case 1825 (6-12) - BRAKE VALVE ASSEMBLY 187505C91, EUROPEAN UNITS ONLY, P.I.N. JAF0140357 & AFTER (06) - POWER TRAIN

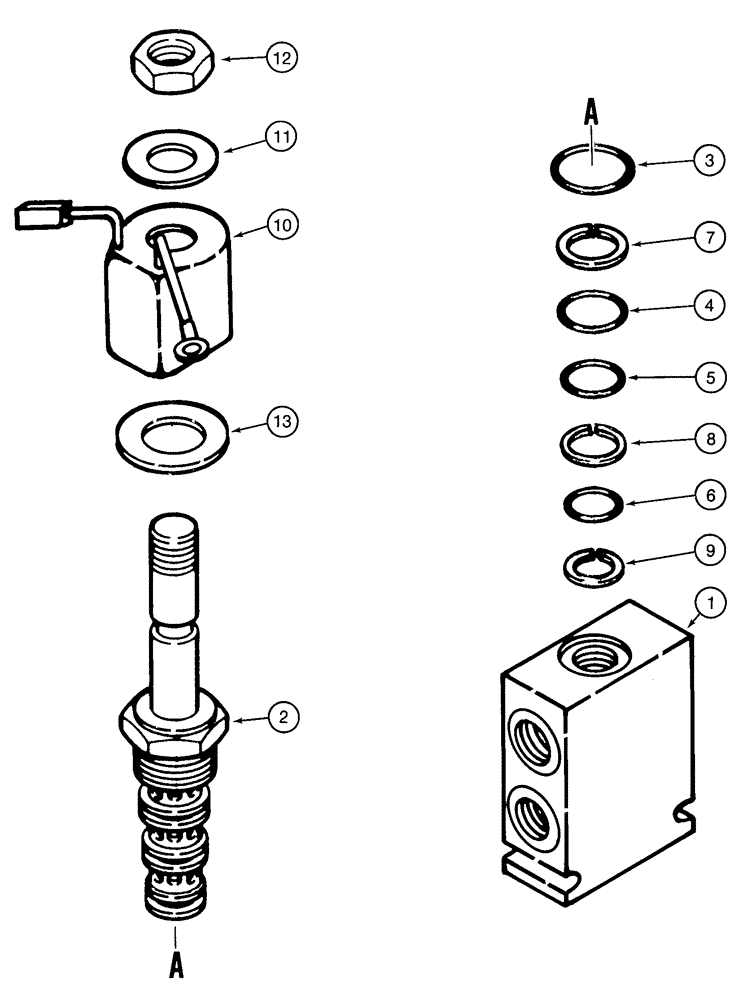

Схема запчастей Case 1825 - (6-12) - BRAKE VALVE ASSEMBLY 187505C91, EUROPEAN UNITS ONLY, P.I.N. JAF0140357 & AFTER (06) - POWER TRAIN
4
12
5
2
8
9
10
3
13
6
1
7
11

Артикул

Название

Примечание

Количество

187505C91

VALVE

ASSEMBLY, Includes: Ref. 1 - 13

1шт.

1

187851C1

BODY

- valve

1шт.

2

187849C1

SOLENOID VALVE

VALVE - solenoid, 4-way, cartridge only

1шт.

187850C1

SEAL KIT

KIT - seal replacement, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - vlave

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

187852C1

SWITCH

KIT - solenoid coil, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

COIL AND HOUSING ASSEMBLY - valve

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - coil

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - hex, coil

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

Выбрано товаров: 16
