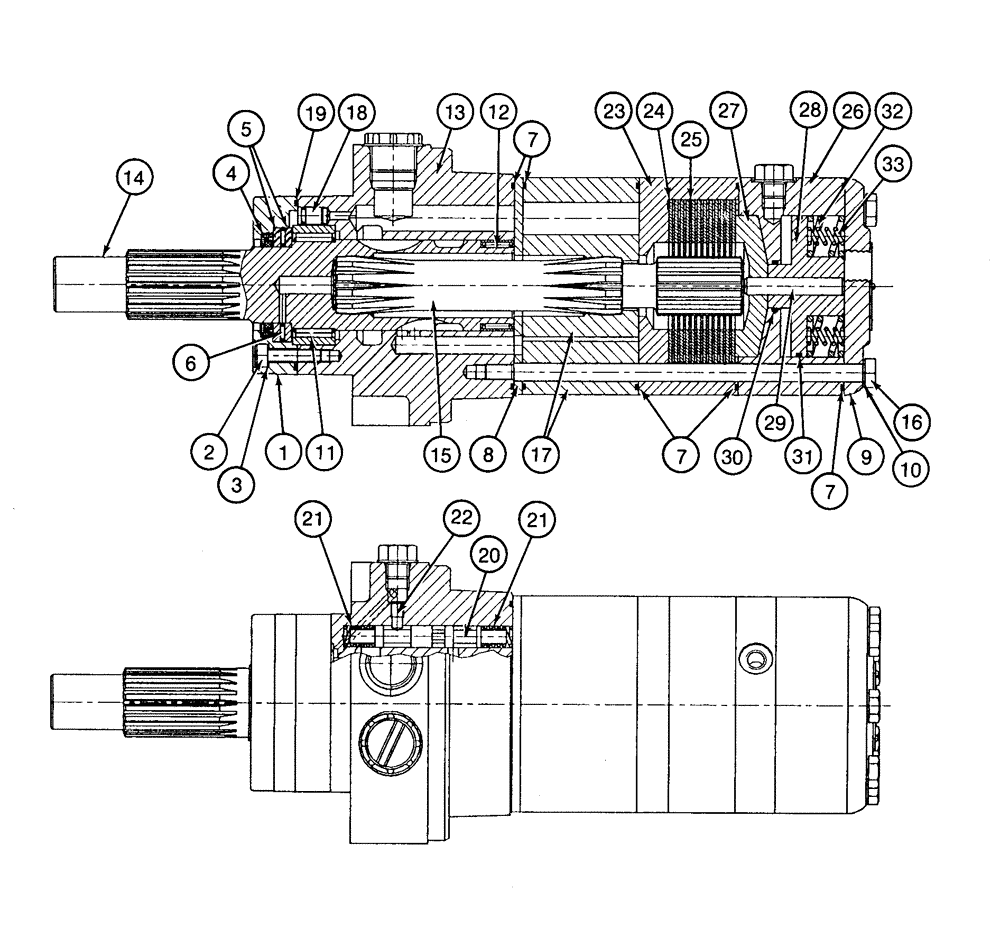

Запчасти Case 1825 (6-10) - HYDRAULIC DRIVE MOTOR WITH BRAKES 135857A1, EUROPEAN MODELS, P.I.N. JAF0140357 AND AFTER (06) - POWER TRAIN

135857A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic drive, Includes: Ref. 1 - 33

2шт.

1

175320A1

FLANGE

- pump, , front

1шт.

2

175322A1

SCREW,M6 x 25mm, Cl 12.9

- special, 6 mm, class 12.9

6шт.

3

175324A1

WASHER

- flat, special

6шт.

4

175325A1

SEAL

SEAL - shaft

1шт.

Part of Seal Kit P/N 175370A1

1шт.

5

175326A1

BEARING ASSY

RACE - bearing

2шт.

6

175327A1

NEEDLE BEARING

BEARING - needle

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 21.3 ID x 1.8 mm wide

4шт.

Part of Seal Kit P/N 175370A1

1шт.

8

175328A1

PLATE

- distributor

1шт.

9

194747A1

COVER

- end

1шт.

10

221656A1

WASHER

- flat, special (Replaces 3141538R1)

7шт.

11

175330A1

NEEDLE BEARING

BEARING - needle

1шт.

12

175331A1

BEARING ASSY

BUSHING - needle bearing

1шт.

13

175332A1

HOUSING

- pump

1шт.

14

175334A1

SHAFT

- splined, front

1шт.

15

175335A1

SHAFT

- splined, rear

1шт.

16

175337A1

SCREW,M8, Cl 10.9

- special, 8 mm, class 10.9

7шт.

17

175340A1

KIT

GEAR - set, gerotor

1шт.

18

175342A1

VALVE

- check

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 74 ID x 2 mm wide

1шт.

Part of Seal Kit P/N 175370A1

1шт.

20

175349A1

BOX

SPOOL - brake

1шт.

21

175345A1

SPRING

return

2шт.

22

175347A1

PORT

ORIFICE, 0.047 inch

1шт.

23

175344A1

PLUNGER

SPOOL - brake

1шт.

24

175350A1

NOTCHED DISK

DISC - brake, outer

12шт.

25

175352A1

CLUTCH PLATE

DISC - brake, inner

11шт.

26

221658A1

HOUSING

- brake piston (Replaces 175353A1)

1шт.

27

221659A1

BEARING LINER

PAD - thrust, brake (Replaces 175354A1)

1шт.

28

221660A1

PISTON

- brake (Replaces 175356A1)

1шт.

#28 - 175356A1 SUBS TO 221660A1. Rings are P/N 221661A1 (BU 20.1 mm) and 221662A1 (BU 61.8 mm).

1шт.

29

175363A1

SPACER

- brake

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - 20 ID x 2 mm wide

1шт.

Part of Seal Kit P/N 175370A1

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - 61 ID x 2 mm wide

1шт.

Part of Seal Kit P/N 175370A1

1шт.

32

175365A1

SPRING

brake actuating, large

7шт.

33

175368A1

SPRING

brake actuating, small

7шт.

175370A1

SEAL KIT

KIT - seal, Includes: Ref. 4, 7, 19, 30 and 31

1шт.
