Запчасти Case 1825 (6-04) - TANDEM PUMP H673523 AND 142808A2 (06) - POWER TRAIN

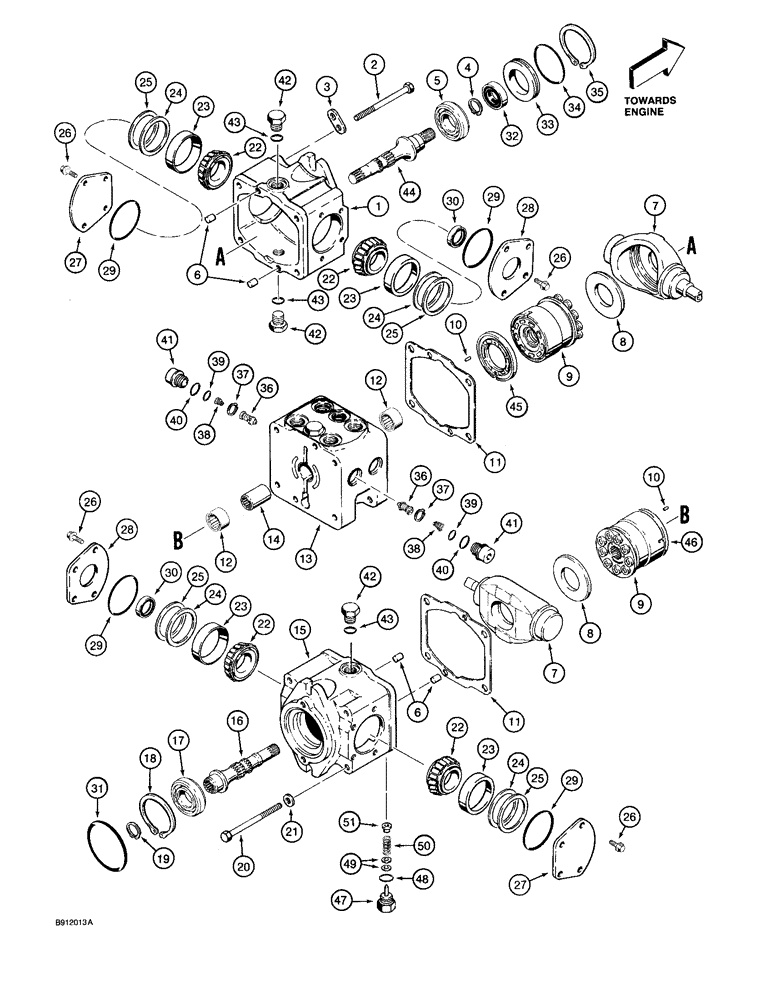

Схема запчастей Case 1825 - (6-04) - TANDEM PUMP H673523 AND 142808A2 (06) - POWER TRAIN
27
22
1
16
25
24
35
49
29
32
11
8
13
27
51
26
30
43
43
48
12
26
21
22
36
42
10
8
10
36
43
11
7
29
2
6
18
25
5
45
9
44
42
12
20
23
38
23
4
46
39
50
28
41
47
24
19
22
38
22
7
40
40
30
34
29
17
25
26
23
41
15
37
42
9
24
37
6
33
26
24
28
14
25
31
39
23
29
3

Артикул

Название

Примечание

Количество

H673523

PUMP

ASSEMBLY - tandem, for European Units prior to P.I.N. JAF0140357 and for all North American Units, Includes: Ref. 1 - 51

1шт.

142808A2

PUMP

ASSEMBLY - tandem, for European Units only, P.I.N. JAF0140357 and after, Includes: Ref. 1 - 51

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - pump, shaft end

1шт.

2

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

4шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - lifting

2шт.

4

F62023

SNAP RING,#93, Ext

Ring, Snap, , ball bearing #93, Ext

1шт.

5

P39667

BEARING

- ball, drive shaft, was H438291

1шт.

6

F23124

AXLE PIN

PIN - locating, housing alignment

4шт.

7

H438303

LARGE PLATE

PLATE - swash

2шт.

8

H438286

LARGE PLATE

PLATE - wear

2шт.

9

H674614

BLOCK ASSY.

BLOCK ASSEMBLY - cylinder, component parts are not serviced separately

2шт.

10

H351445

PIN

- dowel, valve block

2шт.

11

H438287

GASKET

- valve block

2шт.

12

599120R91

ROLLER BEARING,0.875" ID x 1.188" OD x 0.75"

BEARING - needle, valve block

2шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - valve

1шт.

14

H387639

COUPLING

valve block

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - pump, closed end

1шт.

16

H438313

SHAFT

- closed end

1шт.

17

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING - ball, closed end shaft, was 40040

1шт.

18

617933R1

SNAP RING,2.562", Int, #256

Ring, Snap, , brg, was H758300 2.562", Int, #256

1шт.

19

301020R1

SNAP RING,#118, Ext

Ring, Snap, , shaft, was A8218 #118, Ext

1шт.

20

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

4шт.

21

H438289

WASHER

- flat, special

4шт.

H438304

BEARING

KIT - roller bearing, order 618023R91 and 618024R1, Includes: Ref. 22 and 23

4шт.

22

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller, 1-3/8 inch ID, was G57452

1шт.

23

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Tapered roller, was G57451

1шт.

24

H438305

BLOCK

SHIM - bearing, .003 inch thick

4шт.

24

H438306

BLOCK

SHIM - bearing, .005 inch thick

4шт.

24

H438307

BLOCK

SHIM - bearing, .010 inch thick

4шт.

24

H438308

BLOCK

SHIM - bearing, .020 inch thick

4шт.

25

H438309

SPACER

- bearing

4шт.

26

H438312

SCREW,5/16" - 18 x 0.63"

- housing cover

16шт.

27

H438310

COVER

- housing, closed

2шт.

28

H438311

COVER

CARRIER - housing, open

2шт.

29

238-5146

O-RING,0.103" Thk x 2.612" ID, -146, Cl 5, 75 Duro

4шт.

30

H438288

SEAL

- lip

2шт.

31

H438062

SHAFT SEAL

O-RING, housing

1шт.

32

H438285

SEAL

- lip, drive shaft

1шт.

33

H438292

SEAL

CARRIER - drive shaft seal

1шт.

34

238-5036

O-RING,0.07" Thk x 2.364" ID, -36, Cl 5, 75 Duro

3 ID x 1/16 inch wide

1шт.

35

617933R1

SNAP RING,2.562", Int, #256

Ring, Snap, , seal carrier, was H758300 2.562", Int, #256

1шт.

36

N14434

VALVE, PRESSURE RELI

VALVE - circuit relief, pump

4шт.

37

H438302

RING

- retaining, relief valve

4шт.

38

N14435

SPRING

- relief valve

4шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

40

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

4шт.

41

H438301

PLUG

- relief valve

4шт.

42

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. Ref. 43

3шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

H438290

SHAFT

- drive

1шт.

45

H438293

LARGE PLATE

PLATE - cylinder block, drive shaft end

1шт.

46

H438294

LARGE PLATE

PLATE - cylinder block, closed end

1шт.

47

H438295

PLUG

- charge relief, closed end

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

H438296

BLOCK

SHIM - charge relief, .010 inch thick

1шт.

49

H438297

BLOCK

SHIM - charge relief, .020 inch thick

1шт.

49

H438298

BLOCK

SHIM - charge relief, .050 inch thick

1шт.

50

H438299

SPRING

- compression, plug, used with H673523 tandem pump only

1шт.

50

195133A1

SPRING

- compression, plug, used with 142808A2 tandem pump only

1шт.

51

H438300

POPPET

POPPET - plug, charge relief

1шт.

Выбрано товаров: 60
