Запчасти Case 1825 (6-02) - TANDEM PUMP MOUNTING AND ADAPTING PARTS (06) - POWER TRAIN

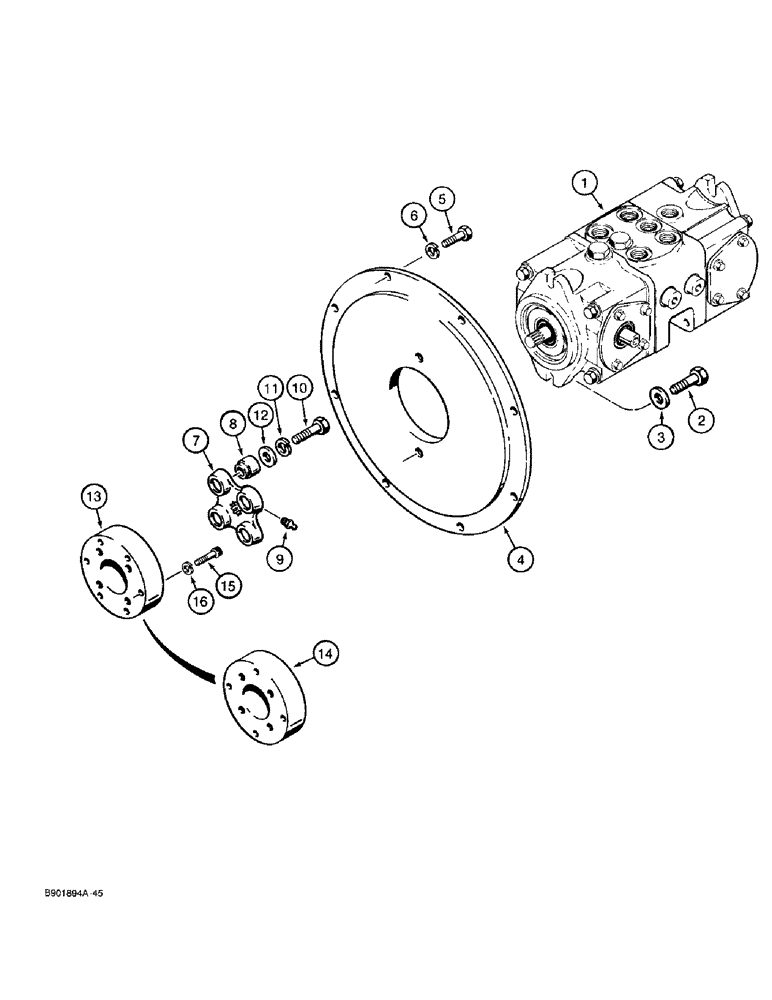

Схема запчастей Case 1825 - (6-02) - TANDEM PUMP MOUNTING AND ADAPTING PARTS (06) - POWER TRAIN
5
13
3
9
7
16
2
11
12
4
1
10
15
8
6
14

Артикул

Название

Примечание

Количество

1

H673523

PUMP

ASSEMBLY - tandem, parts list Fig. 6-04 for European Units Prior to P.I.N. JAF0140357 and all North American Units

1шт.

1a

142808A1

PUMP

ASSEMBLY - tandem, parts list pages 6-5 and 6-7 for European Units P.I.N. JAF0140357 And After

1шт.

2

413-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5

- hex, 9/16 NC x 1-1/2 inch

2шт.

3

195-537

WASHER,9/16"

- flat, 19/32 x 1-5/32 x 3/32 inch

2шт.

4

D135224

PLATE

- pump mounting

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

131693A1

FLEXIBLE COUPLING,13T

COUPLING - flexible, tandem pump shaft, w/o zerk (Replaces D140524), Includes: Ref. 8

1шт.

8

D142330

BUSHING

- coupling, was A45216

4шт.

9

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 x 1/2 inch

1шт.

10

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

4шт.

11

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

12

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat

4шт.

13

D136251

PLATE

- tandem pump adapting, used on gasoline models only

1шт.

14

D135816

PLATE

- tandem pump adapting, used on diesel models only

1шт.

15

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

4-6шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4-6шт.

Выбрано товаров: 17
