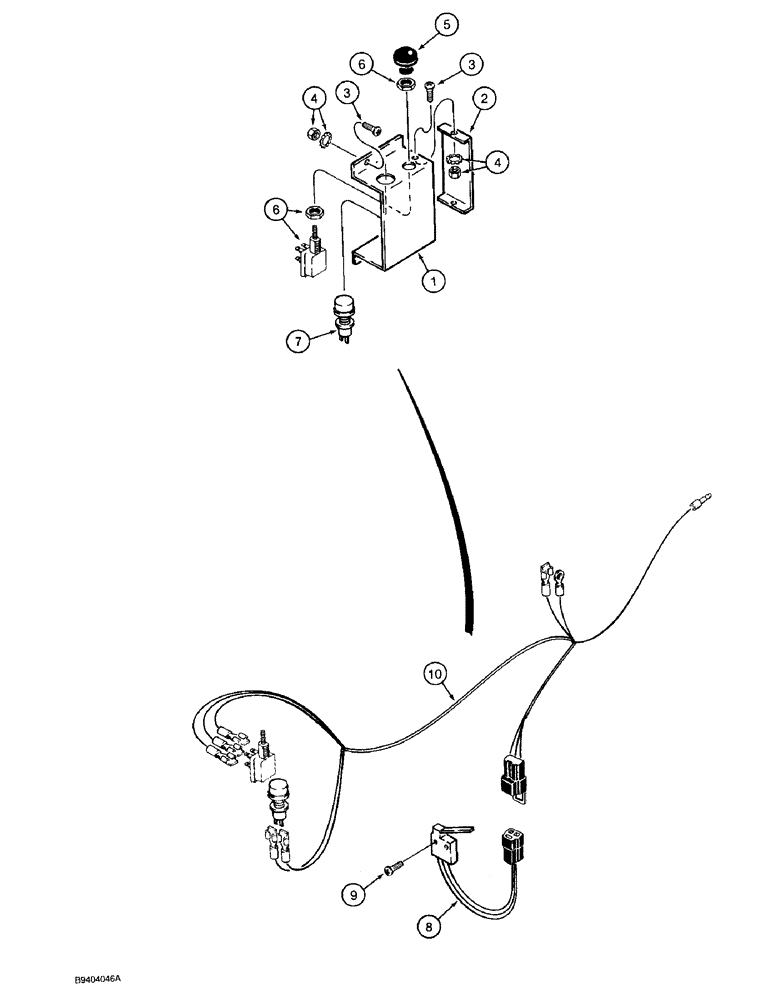

Запчасти Case 1825 (4-38) - PARKING BRAKE CONTROL AND WIRING, EUROPEAN MODELS, P.I.N. JAF0140357 AND AFTER (04) - ELECTRICAL SYSTEMS

1

141281A1

COVER

- brake switch and lamp mounting, was 141128A1

1шт.

2

104823A1

COVER

- switch bracket

1шт.

3

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

- pan head cross slotted, No. 8-32 x 5/8 inch

4шт.

4

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

4шт.

5

141063A1

BUTTON

Knob, Parking Brake

1шт.

6

141100A1

IGNITION SWITCH

Switch, SPDT Push-Pull

1шт.

7

H603852

LIGHT

LAMP - warning, brake

1шт.

8

1343288C1

LIMIT SWITCH

SWITCH ASSEMBLY - brake

1шт.

9

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

10

142701A1

HARNESS

- wiring, brake

1шт.
