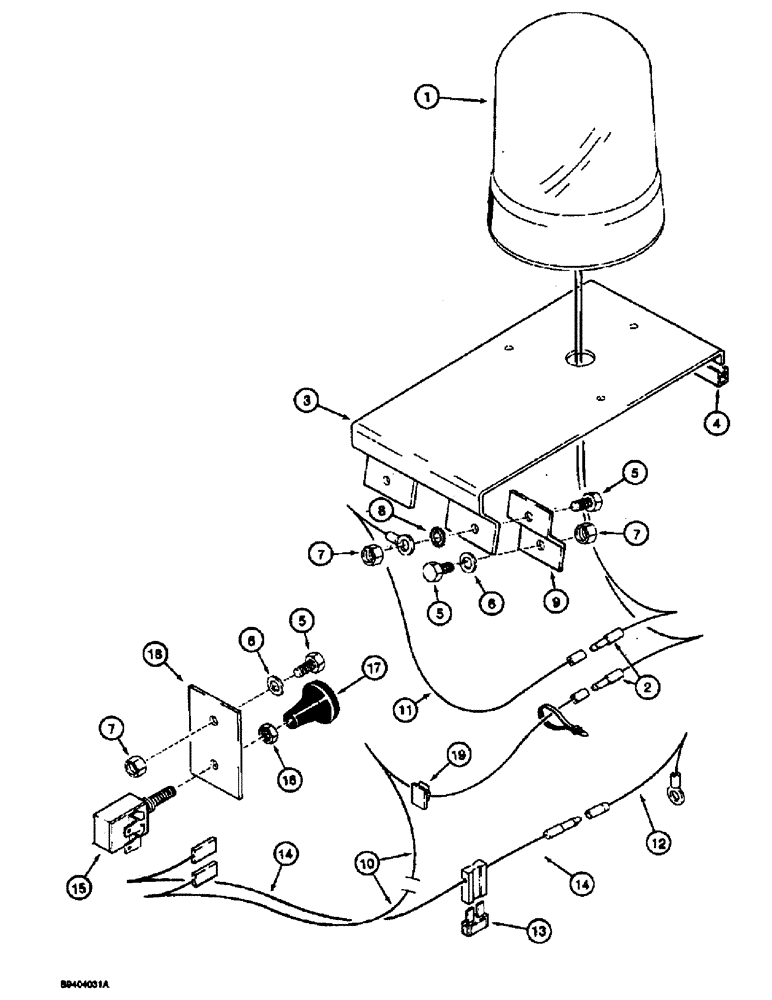

Запчасти Case 1825 (4-34) - ROTATING BEACON, EUROPEAN MODELS, PRIOR TO P.I.N. JAF0140357 (04) - ELECTRICAL SYSTEMS

1

E99128

BEACON ROTATING

BEACON - rotating

1шт.

2

E20680

TERMINAL CONNECTOR,Male

TERMINAL - electrical, Male

2шт.

3

109264A1

SUPPORT

BRACKET - mounting, beacon

1шт.

4

D60179

RUBBER STRIP

TRIM - edge, 6-1/2 inch long, cut from F42827 bulk, see below

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4 - 5шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2 - 3шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4 - 5шт.

8

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - external tooth lock, 5/16 inch

1шт.

9

109265A1

BRACKET

-mounting, small (Use only with FOPS/ROPS frames)

1шт.

10

102332A1

ELECTRICAL WIRE

WIRE -, Serial Range: beacon-switch

1шт.

11

102333A1

ELECTRICAL WIRE

WIRE -, Serial Range: beacon-ground

1шт.

12

103938A1

ELECTRICAL WIRE

WIRE -, Serial Range: battery-fuse

1шт.

13

A149800

FUSE,10 Amp

- 10 ampere (Red)

1шт.

14

102331A1

ELECTRICAL WIRE

WIRE -, Serial Range: fuse-switch

1шт.

15

D74330

SWITCH

- rotating beacon, Includes: Ref. 16

1шт.

16

N7557

NUT

- hex, 3/8 NF

1шт.

17

D92573

BUTTON

KNOB - switch

1шт.

18

103892A1

LARGE PLATE

PLATE - mounting, switch

1шт.

19

H439303

CLIP

- harness retaining

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long, use to make Ref. 4

1шт.
