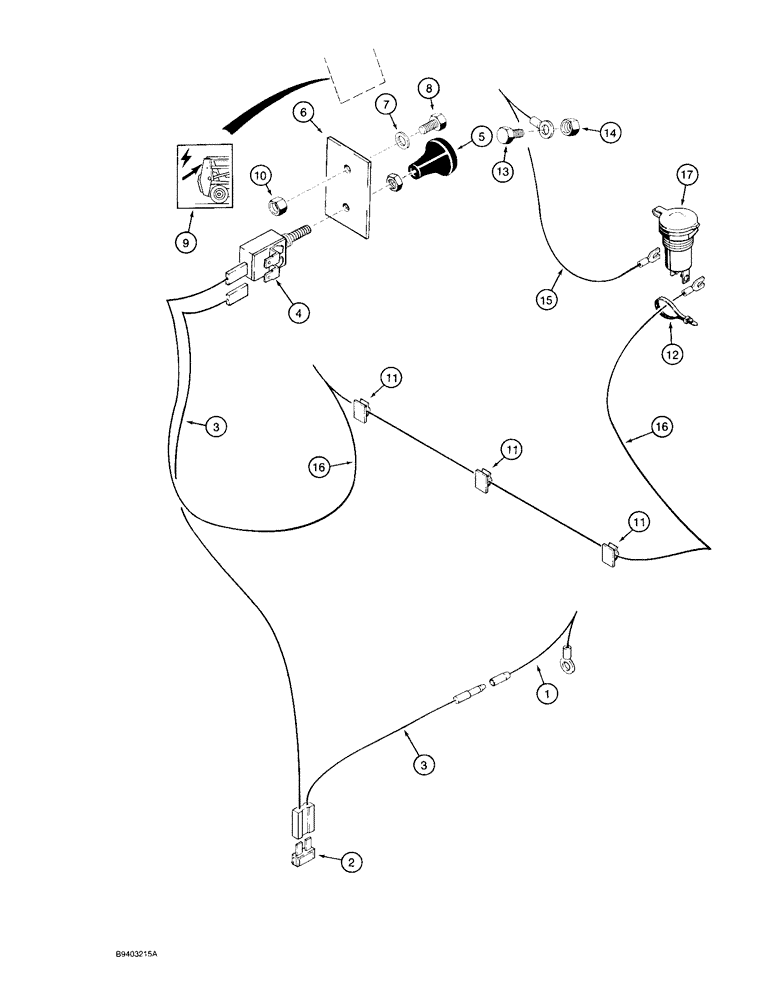

Запчасти Case 1825 (4-25A) - ACCESSORY WIRING, EUROPEAN DIESEL MODELS, P.I.N. JAF0140357 AND AFTER (04) - ELECTRICAL SYSTEMS

1

103938A1

ELECTRICAL WIRE

WIRE - positive terminal of starter to fuse (Replaces 102330A1)

1шт.

2

A149800

FUSE,10 Amp

- 10 ampere (Red), blade type

1шт.

3

102331A1

ELECTRICAL WIRE

WIRE -, Serial Range: fuse-switch

1шт.

4

D74330

SWITCH

- electrical

1шт.

5

178112A1

BUTTON

KNOB - switch, was D92573

1шт.

6

103892A1

LARGE PLATE

PLATE - mounting, switch

1шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

9

142279A1

DECAL

- auxiliary electrical outlet

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

11

H439303

CLIP

- harness retaining

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

1шт.

14

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC

1шт.

15

142209A1

ELECTRICAL WIRE

WIRE - horn

1шт.

16

142210A1

ELECTRICAL WIRE

WIRE - switch to electrical outlet

1шт.

17

142211A1

SOCKET

OUTLET - electrical

1шт.
