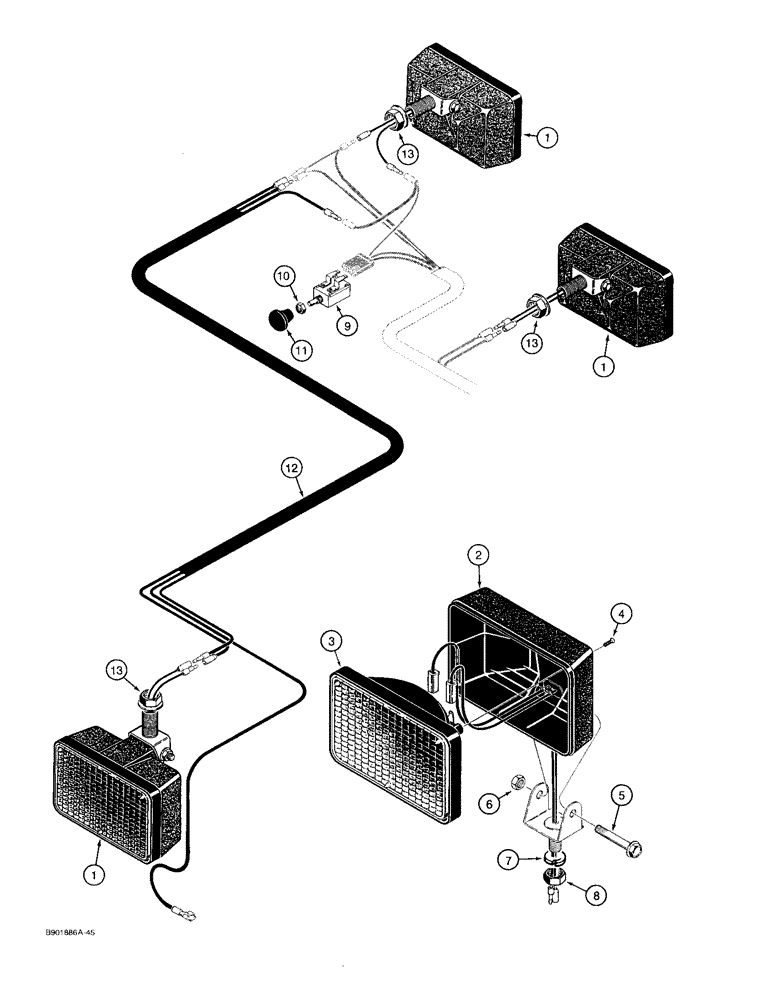

Запчасти Case 1825 (4-24) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

H672846

INTERIOR LIGHT

LAMP ASSEMBLY - flood, Includes: Ref. 2 - 8

3шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

3

N14646

INTERIOR LIGHT

BULB - sealed beam, 35W

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat slotted, No. 8-18 x 1/2 inch

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

9

D74330

SWITCH

- lamp, Includes: Ref. 10

1шт.

10

N7557

NUT

- hex, 3/8 inch NF, special

1шт.

11

108314A1

BUTTON

KNOB - lamp switch, was D95781

1шт.

12

D134075

HARNESS

- lamps and horn

1шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.
