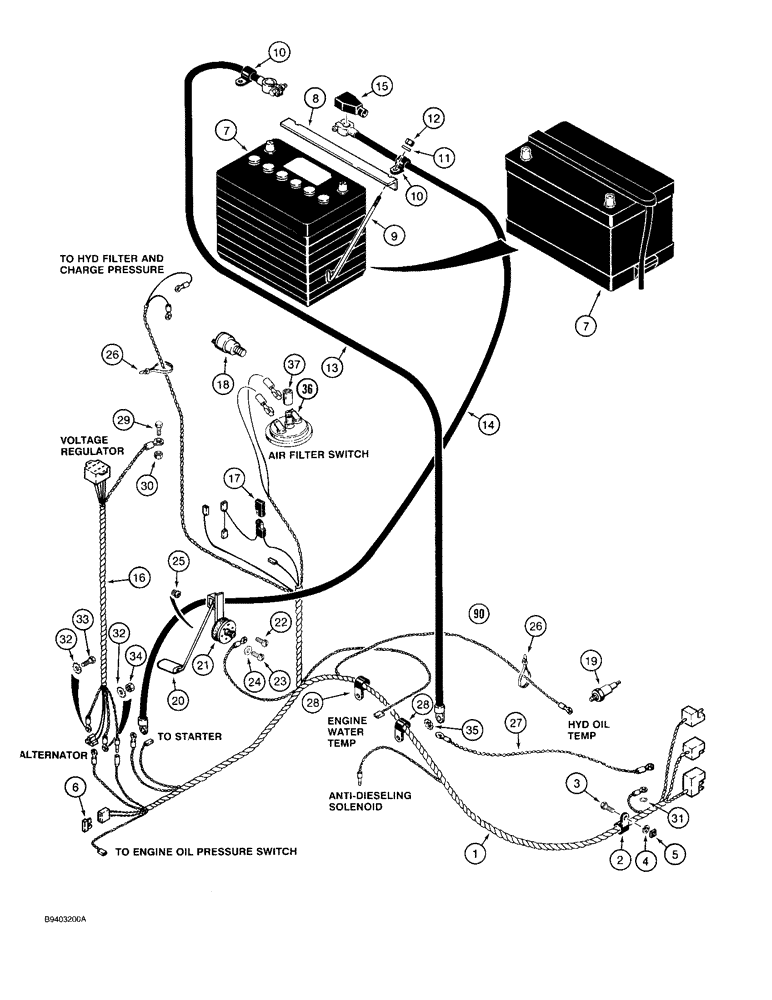

Запчасти Case 1825 (4-21A) - REAR HARNESS AND BATTERY, GASOLINE MODELS, PRIOR TO P.I.N. JAF0096778 (04) - ELECTRICAL SYSTEMS

1

H438902

HARNESS

- rear (replaces D136820)

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

- square, 5/16 inch NC

1шт.

6

A149804

FUSE

- 30 amp

1шт.

7

120210A1

BATTERY

- wet, 12 volt (was B2472)

1шт.

8

D59706

ANGLE

- battery hold down

1шт.

9

H436311

BOLT

- J-type, battery hold down

2шт.

10

S77322

CLAMP

- harness

2шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

13

D136983

CABLE

- battery, negative

1шт.

14

D136982

CABLE

- battery, positive, Includes: Ref. 15

1шт.

15

383619R1

COVER

BOOT - positive battery cable

1шт.

16

D136891

HARNESS

- voltage, Serial Range: regulator-alternator

1шт.

17

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness

1шт.

18

H436247

SWITCH, PRESSURE

SWITCH - charge pressure (replaces D123864)

1шт.

19

H439301

SWITCH

- hydraulic oil temperature (replaces D132280)

1шт.

20

D122404

SENDER UNIT

SENDER - fuel gauge

1шт.

21

104812C3

GASKET,3.05mm Thk

- fuel sender, was A11822

1шт.

22

H435859

SCREW,#10 - 32 x 3/4"

- special

4шт.

23

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine, pan head Phillips, No. 10 NF x 3/4 inch

1шт.

24

D83885

WASHER

- special, copper

1шт.

25

H435860

INSERT

- threaded, fuel gauge sender mounting

5шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

D87572

ELECTRICAL WIRE

WIRE - ground

1шт.

28

S77322

CLAMP

- harness, closed, 12.7 mm ID, rear harness, use existing mounting hardware

2шт.

29

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

30

825-1405

NUT,M5, Cl 8

- hex, self-locking, 1/4 inch NC

2шт.

31

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

32

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

2шт.

33

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

1шт.

34

825-1405

NUT,M5, Cl 8

1шт.

35

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

36

1983233C1

RESTRICTION SWITCH

SENDER - air cleaner restriction indicator

1шт.

37

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.
