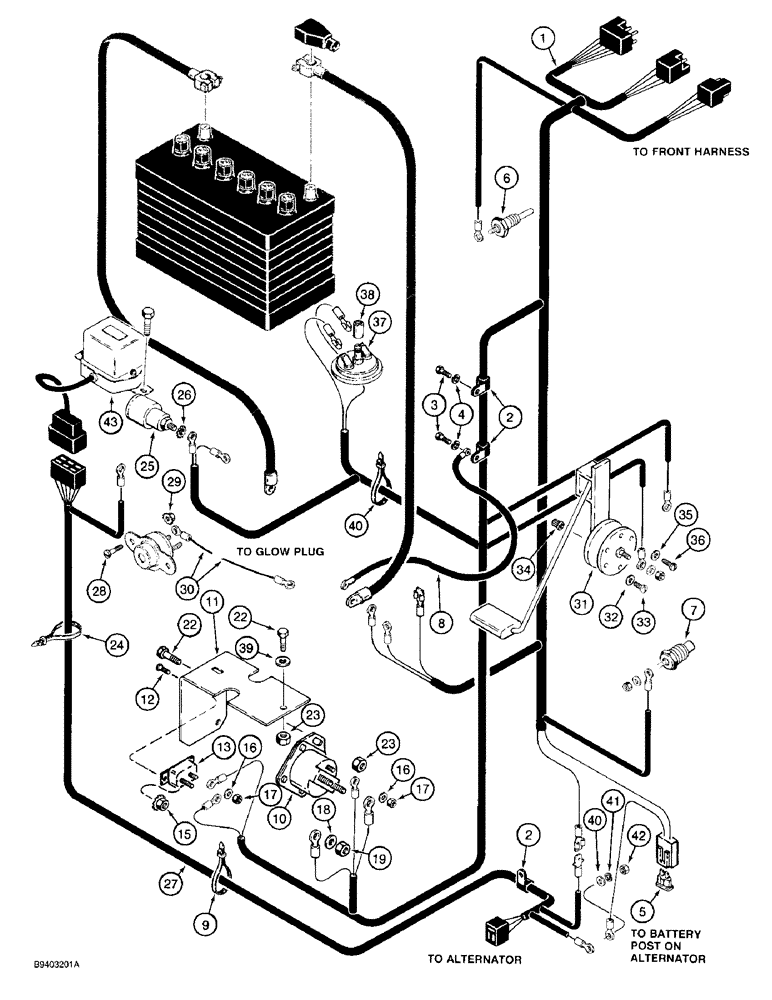

Запчасти Case 1825 (4-19A) - REAR HARNESS, DIESEL MODELS, P.I.N. JAF0096778 AND AFTER (04) - ELECTRICAL SYSTEMS

1

131619A1

HARNESS

- rear

1шт.

2

S77322

CLAMP

- harness

2шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm-1.25 x 20 mm

2шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

5

A149804

FUSE

- 30 ampere

1шт.

6

H439301

SWITCH

- hydraulic oil temperature

1шт.

7

1983238C1

SENSOR,1/2" - 14

SENDER - engine water temperature, includes nut

1шт.

8

D87572

ELECTRICAL WIRE

WIRE - ground

2шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon, retaining

1шт.

10

A39079

SOLENOID

RELAY - glow plug

1шт.

11

D139859

MOUNTING PARTS

BRACKET - mounting, glow plug relay and circuit breaker

1шт.

12

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

13

A22877

BREAKER,40A

- circuit, 40 amperes

1шт.

15

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

2шт.

16

495-31022

WASHER,#10

2шт.

17

225-14210

NUT,#10-32

2шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

20

495-31022

WASHER,#10

1шт.

21

225-14210

NUT,#10-32

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

H436247

SWITCH, PRESSURE

SWITCH - charge pressure

1шт.

26

493-41017

LOCK WASHER,Ext, #8

WASHER - external tooth lock, No. 8

1шт.

27

D138965

HARNESS

- voltage, Serial Range: regulator-alternator

1шт.

28

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch

2шт.

29

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC

2шт.

30

E99994

ELECTRICAL WIRE

WIRE - glow plug

1шт.

31

D122404

SENDER UNIT

SENDER - fuel gauge

1шт.

32

104812C3

GASKET,3.05mm Thk

- fuel sender, was A11822

1шт.

33

H435859

SCREW,#10 - 32 x 3/4"

- special

4шт.

34

H435860

INSERT

- threaded, fuel sender mounting

5шт.

35

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine, pan head Phillips, No. 10 NF x 3/4 inch

1шт.

36

D83885

WASHER

- special, copper

1шт.

37

1983233C1

RESTRICTION SWITCH

SENDER - air cleaner restriction indicator

1шт.

38

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

39

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

1шт.

40

H426767

WASHER

- flat, special

1шт.

41

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42

825-1406

NUT,M6, Cl 8

1шт.

43

112567A1

REGULATOR

- voltage

1шт.
