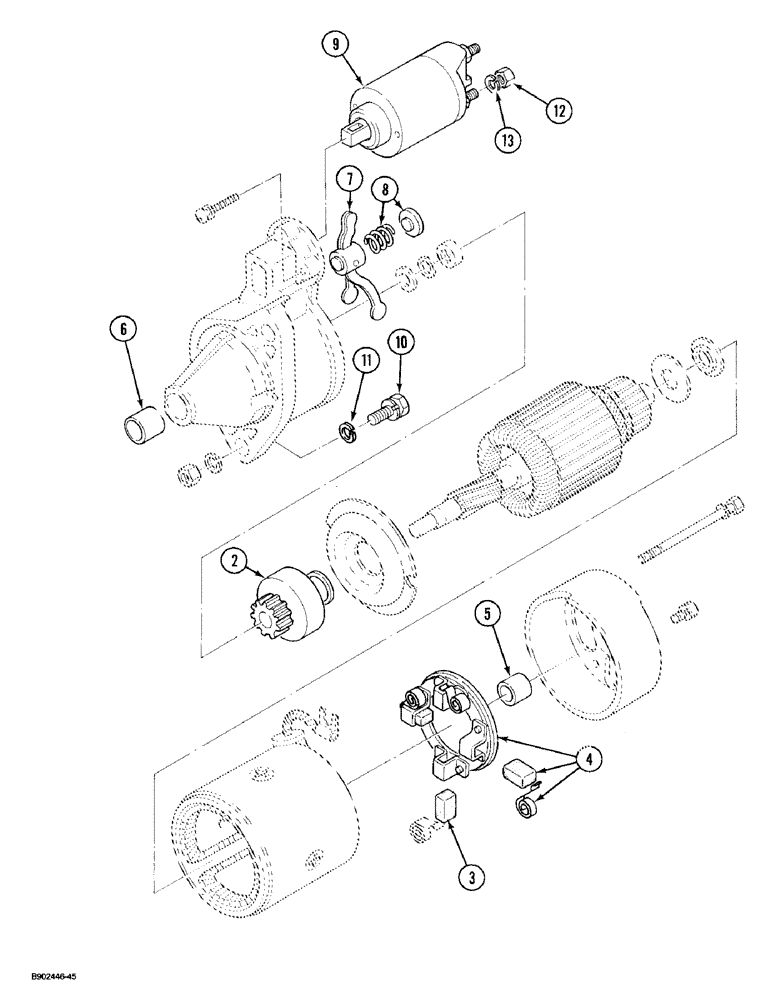

Запчасти Case 1825 (4-14) - STARTER MOTOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1972280C1

STARTING MOTOR

STARTER ASSEMBLY - engine, Includes: Ref. 2 - 9

1шт.

2

120932A1

PINION

GEAR - starter drive, was 1972282C1

1шт.

3

120934A1

BRUSH, COMMUTATOR

BRUSH - positive, was 1972283C1

2шт.

4

1960023C1

BRACKET

HOLDER - brush, with two negative brushes and springs

1шт.

5

120936A1

BUSHING

- rear, was 1960026C1

1шт.

6

120937A1

BUSHING

- drive end, was 1960028C1

1шт.

7

120938A1

LEVER

- shift, was 1960030C1

1шт.

8

120939A1

KIT

- lever return spring and seat, was 1960031C1

1шт.

9

120940A1

SOLENOID

- magnetic switch, was 1972285C1

2шт.

10

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

11

892-11010

LOCK WASHER,M10

2шт.

12

825-1408

NUT,M8, Cl 8

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.
