(4-12) - ALTERNATOR, GASOLINE MODELS

Запчасти Case 1825 (4-12) - ALTERNATOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

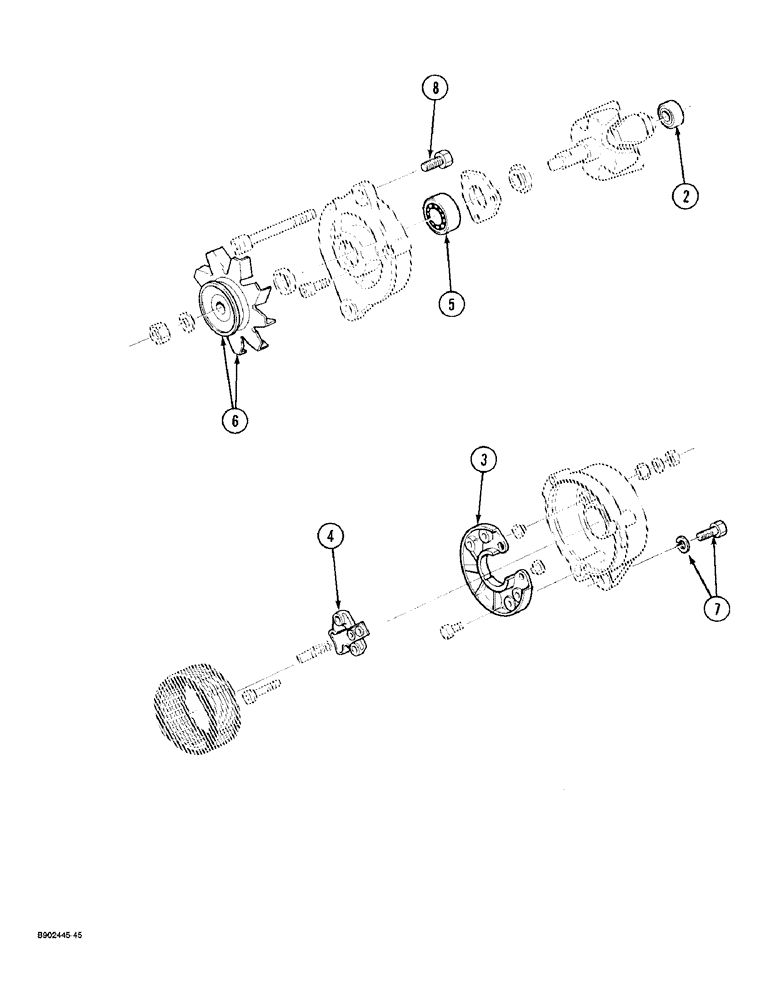

Схема запчастей Case 1825 - (4-12) - ALTERNATOR, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS
4
2
7
5
6
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1972275C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 12V - 35A, Includes: Ref. 2 - 6

1шт.

87297258

REMAN-ALTERNATOR

For N.A. only

1шт.

87297259

CORE-ALTERNATOR

Return number - For N.A. only

1шт.

2

1972276C1

BALL BEARING

BEARING - rotor

1шт.

3

1972277C1

RECTIFIER

RECTIFIER - alternator

1шт.

4

1959653C1

BRACKET

HOLDER - brush

1шт.

5

1972279C1

BALL BEARING

BEARING - drive end

1шт.

6

1972336C1

PULLEY

PULLEY ASSEMBLY - with fan

1шт.

7

1959659C1

BOLT,M14 x 6 x 50mm

SCREW - with lock washer

1шт.

8

1960020C1

BOLT

BOLT - alternator to adjusting bar

1шт.
