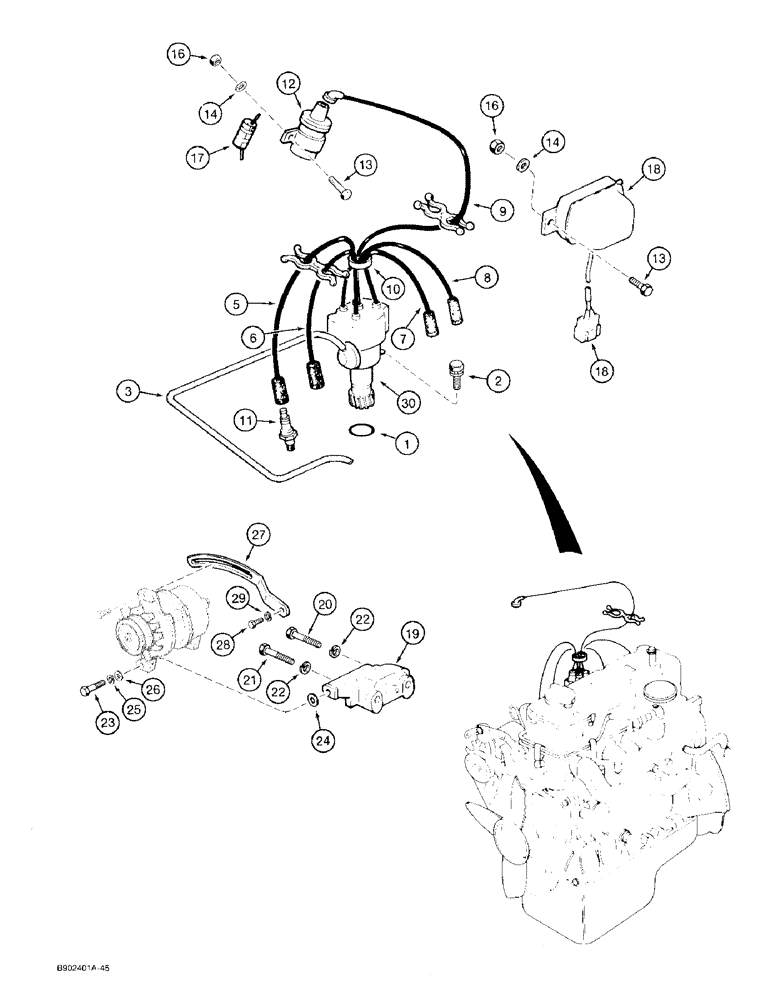

Запчасти Case 1825 (4-08) - ENGINE ELECTRICAL SYSTEM, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

1972212C1

RING

- distributor support seal

1шт.

2

1972213C1

CAPTIVE WASHER SCREW

SCREW - distributor lock down

1шт.

3

1972249C1

TUBE

- vacuum advance control

1шт.

1972314C1

CABLE

SET - high tension, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

CABLE - high tension No. 1

1шт.

6

NSS

NOT SOLD SEPARAT

CABLE - high tension No. 2

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE - high tension No. 3

1шт.

8

NSS

NOT SOLD SEPARAT

CABLE - high tension No. 4

1шт.

9

NSS

NOT SOLD SEPARAT

CABLE - high tension, Serial Range: coil-distributor

1шт.

10

NSS

NOT SOLD SEPARAT

RING - high tension cable

1шт.

11

1972219C1

PLUG

- spark (NGK B4ES)

4шт.

12

1972220C1

COIL

- ignition, with mounting bracket

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

17

1972221C1

RESISTOR

- ignition coil

1шт.

18

1972223C1

REGULATOR

- voltage

1шт.

19

1972224C1

BRACKET

- alternator

1шт.

20

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

21

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm

1шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

1972225C1

BOLT

-, Serial Range: alternator-bracket

2шт.

24

1972318C1

SHIM

- alternator, 0.3 mm

1шт.

24

1972319C1

SHIM

- alternator, 0.2 mm

1шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

1972226C1

BAR

- alternator adjusting

1шт.

28

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8-1.25 x 20 mm, class 10.9

1шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

30

1972268C1

DISTRIBUTOR

ASSEMBLY - engine, parts list Fig. 4-10

1шт.
