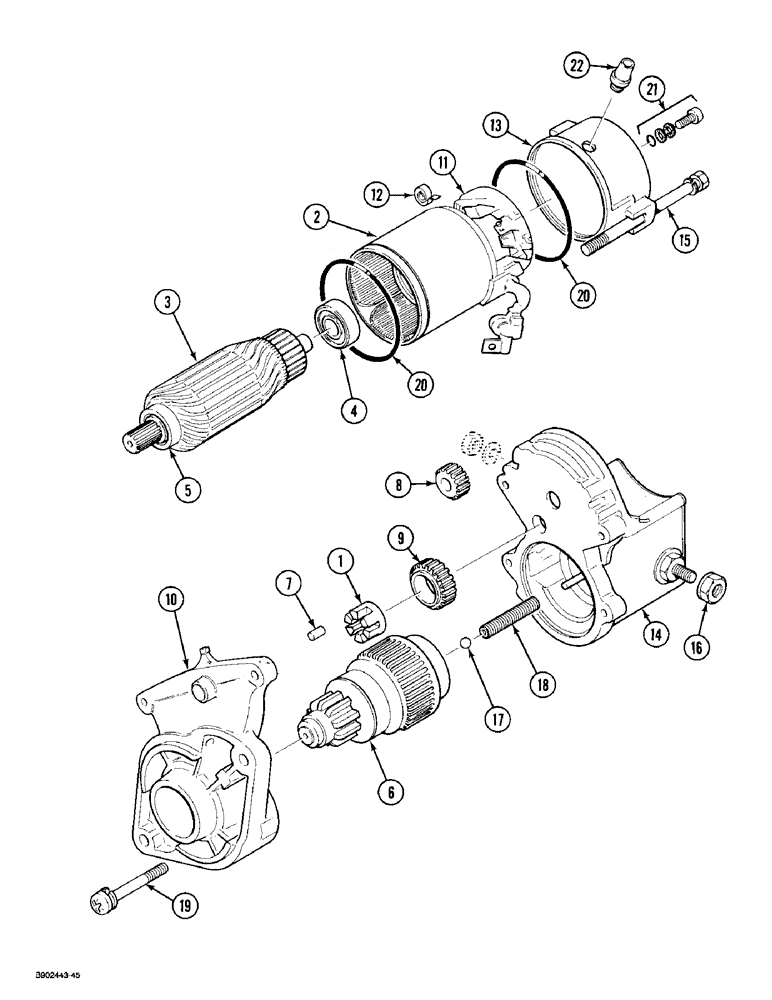

Запчасти Case 1825 (4-06) - STARTER MOTOR, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1959380C1

STARTING MOTOR

STARTER ASSEMBLY - engine, for mounting hardware see Fig. 2-36, Includes: Ref. 1 - 22

1шт.

1

1959587C1

RETAINER

- gear

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - starter field

1шт.

3

NSS

NOT SOLD SEPARAT

ARMATURE ASSEMBLY - starter, Includes: Ref. 4 and 5

1шт.

4

1959588C1

BALL BEARING

BEARING - ball, commutator end

2шт.

5

1959589C1

BALL BEARING

BEARING - ball, drive end

1шт.

6

1959590C1

CLUTCH

- drive

1шт.

7

1959591C1

ROLLER

- retainer

1шт.

8

1959592C1

GEAR

PINION - idler

1шт.

9

1959593C1

GEAR

- starter

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - drive end

1шт.

11

1959594C1

HEATED GLASS

BRUSH ASSEMBLY - starter, Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - brush

1шт.

13

NSS

NOT SOLD SEPARAT

FRAME - commutator end

1шт.

14

1959595C1

SWITCH

- magnetic

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT - through, with lock washer, frame

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - magnetic switch

1шт.

17

211-209

BALL

- 11/32 inch, grade 25, chrome alloy steel

1шт.

18

1959596C1

SPRING

- clutch drive

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - special, frame

1шт.

20

1959597C1

O-RING

- starter

2шт.

21

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - frame

1шт.

22

A49803

BREATHER

- starter

1шт.
