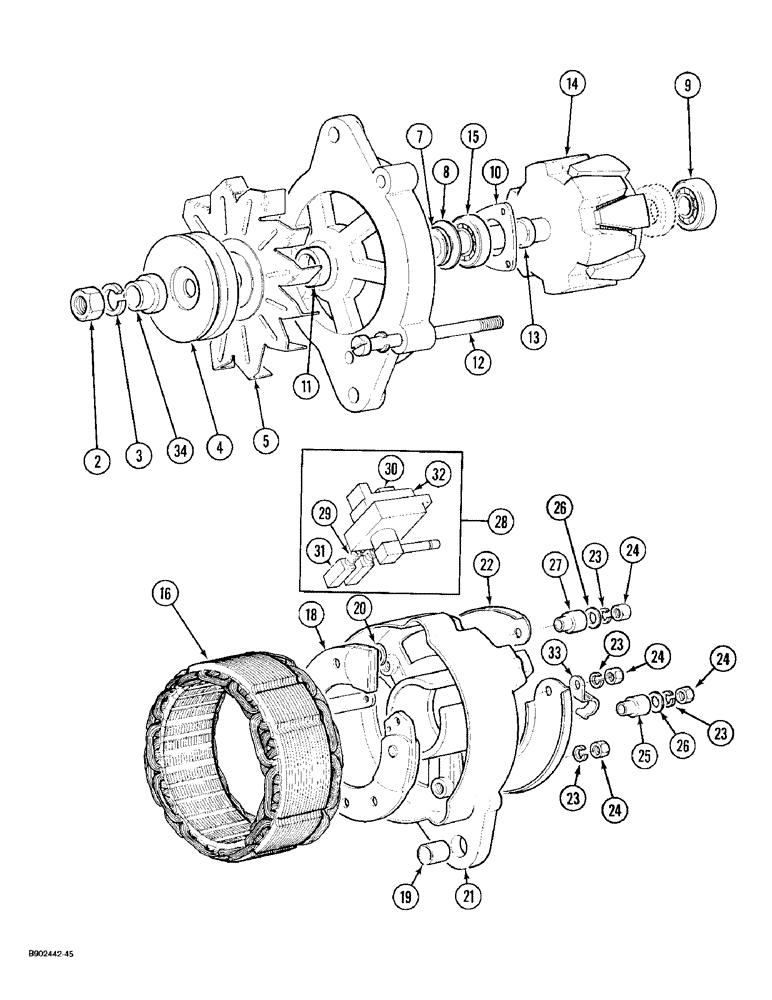

Запчасти Case 1825 (4-04) - ALTERNATOR, DIESEL MODELS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1959600C1
ALTERNATOR
ALTERNATOR ASSEMBLY - engine, see Fig. 4-02 for mounting parts, Includes: Ref. 2 - 34
1шт.
87297258
REMAN-ALTERNATOR
Remanufactured ALTERNATOR - NA Only
1шт.
87297259
CORE-ALTERNATOR
Return number - For N.A. only
1шт.
87297256
REMAN-ALTERNATOR
Remanufactured ALTERNATOR - NA Only
1шт.
87297257
CORE-ALTERNATOR
Return number - For N.A. only
1шт.
2
1959601C1
NUT
NUT - hex
1шт.
3
1959602C1
SPRING WASHER
WASHER - lock
1шт.
4
1959603C1
PULLEY
PULLEY - alternator
1шт.
5
1959604C1
FAN
FAN - alternator
1шт.
6
1959605C1
FRAME
FRAME - drive end
1шт.
7
1959606C1
SEAL
SEAL - felt
1шт.
8
1959607C1
COVER
COVER - felt seal
1шт.
9
1959608C1
BALL BEARING
BEARING - ball, rotor
1шт.
10
1959609C1
PLATE
PLATE - retainer
1шт.
11
1959610C1
COLLAR
COLLAR - frame
1шт.
12
1959611C1
BOLT
BOLT - with lock washer
2шт.
13
1959612C1
SPACER
SPACER - rotor
1шт.
14
1959613C1
ARMATURE
ROTOR - alternator
1шт.
15
1959614C1
BEARING ASSY
BEARING - ball, frame
1шт.
16
1959615C1
YOKE
UNIVERSAL JOINT YOKE STATOR - alternator
1шт.
1959616C1
FRAME
FRAME ASSEMBLY - end, Includes: Ref. 18 - 34
1шт.
18
1959618C1
RECTIFIER
RECTIFIER - alternator
1шт.
19
1959619C1
BUSHING
BUSHING - end frame
1шт.
20
1959620C1
WASHER
WASHER - insulation
1шт.
21
1959621C1
FRAME
FRAME - end
1шт.
22
1959622C1
COVER
COVER - end
1шт.
23
1959425C1
LOCK WASHER
WASHER - lock
5шт.
24
1959623C1
NUT
NUT - hex
5шт.
25
1959624C1
BUSHING
BUSHING - insulation
1шт.
26
1959625C1
WASHER
WASHER - flat
2шт.
27
1959626C1
BUSHING
BUSHING - insulation
1шт.
28
1959627C1
HOLDER
REGULATOR ASSEMBLY - voltage, brush, Includes: Ref. 29 - 34
1шт.
29
1959628C1
SPRING
SPRING - compression
2шт.
30
1959629C1
WASHER
WASHER - insulation
2шт.
31
1959630C1
BRUSH, COMMUTATOR
BRUSH BRUSH - alternator
2шт.
32
1959631C1
INSULATOR
INSULATOR - terminal
1шт.
33
1959632C1
CLAMP
CLAMP - cord
1шт.
34
1959633C1
SPACER
SPACER - pulley, drive end
1шт.
Выбрано товаров: 38
