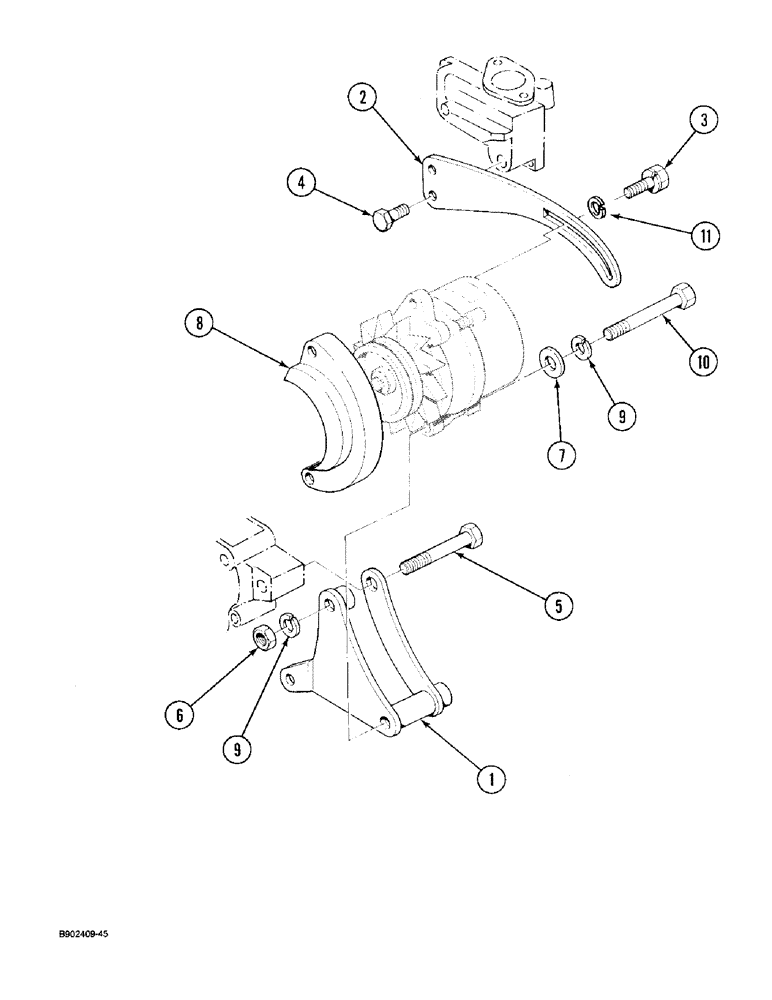

Запчасти Case 1825 (4-02) - ALTERNATOR MOUNTING, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1

1959491C1

SUPPORT

- alternator

1шт.

2

1959492C1

BRACE

- alternator

1шт.

3

1959494C1

BOLT

- with lock washer, alternator, top adjusting

1шт.

4

1959319C1

BOLT

- idler gear shaft

1шт.

5

1959495C1

BOLT

- alternator support

1шт.

6

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

7

1959497C1

WASHER

- flat

1шт.

8

1959582C1

COVER

- alternator

1шт.

9

1959171C1

SPRING WASHER

- lock

2шт.

10

1959617C1

BOLT

- alternator lower

1шт.

11

1959162C1

LOCK WASHER

- lock

1шт.
