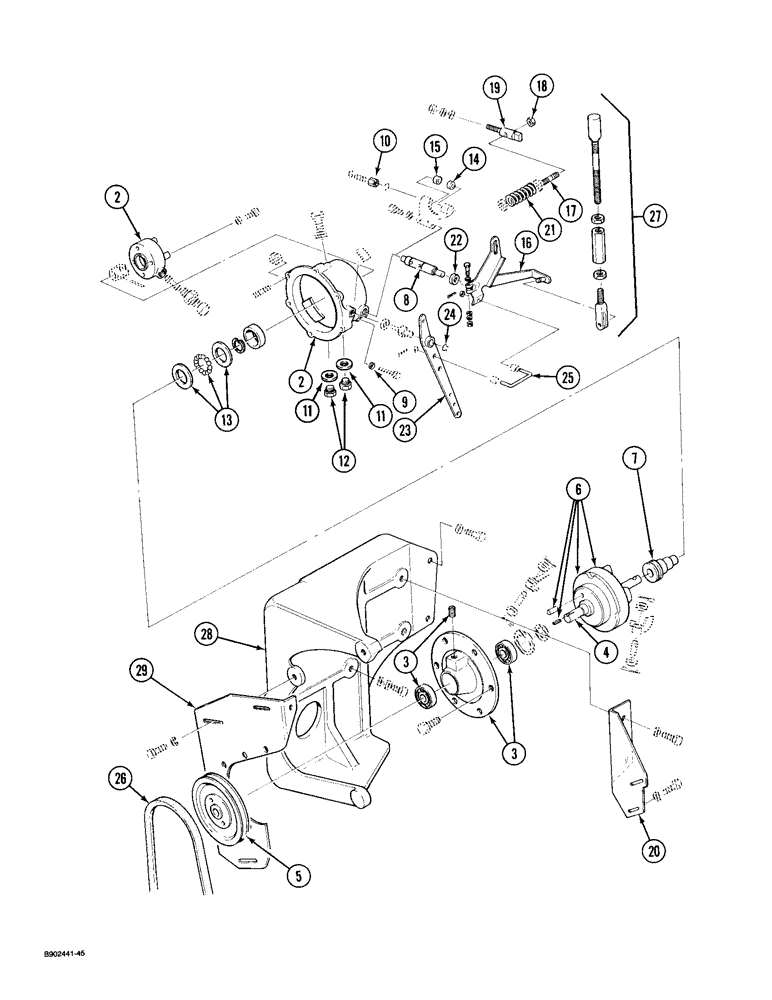

Запчасти Case 1825 (3-28) - MECHANICAL GOVERNOR, GASOLINE MODELS (03) - FUEL SYSTEM

1972263C1

GOVERNOR

ASSEMBLY - mechanical, Includes: Ref. 2 - 26

1шт.

2

1972266C1

KIT

- governor housing

1шт.

3

1972264C1

KIT

- governor housing bearing

1шт.

4

1972329C1

SHAFT

- governor

1шт.

5

1972141C1

PULLEY

- governor

1шт.

6

1972265C1

SET OF PARTS

KIT - weight holder

1шт.

REF 6 1972265C1 MUST ORDER GOVENOR TO GET WEIGHTS. WEIGHTS NOT SOLD SEPARATELY AS CUSTOMER WOULD NOT BE ABLE TO BALANCE PROPERLY. BUYING GOVENOR ASSURES GETTING BALANCED WEIGHTS FROM MANUFACTURER.

1шт.

7

1972340C1

CLAMP

COLLAR - thrust

1шт.

8

1972341C1

SHAFT

- fork

1шт.

9

1972344C1

OIL SEAL

- oil level gauge

1шт.

10

1972345C1

ROLLER

- fork

2шт.

11

1972347C1

SEAL

- oil gallery plug

2шт.

12

1972350C1

PLUG

- oil gallery

2шт.

13

1972270C1

BALL BEARING

BEARING - ball, thrust

1шт.

14

1972358C1

BUSHING

BEARING - fork shaft

1шт.

15

1972359C1

BALL BEARING

BEARING - fork shaft

1шт.

16

1972365C1

LEVER

- governor

1шт.

17

1972367C1

ADJUSTER

STUD - adjusting

1шт.

18

1972368C1

NUT

- adjusting spring

1шт.

19

1972369C1

BOLT

- adjusting

1шт.

20

1972372C1

SUPPORT

- governor, rear

1шт.

21

1972373C1

SPRING

- governor

1шт.

22

1972375C1

CAP

- fork shaft

1шт.

23

1972376C1

LEVER

- governor

1шт.

24

1972377C1

RING

- snap

1шт.

25

1972378C1

STEM

ROD - tension

1шт.

26

1960027C1

BELT

Governor

1шт.

27

1972267C1

ROD

ASSEMBLY - connecting

1шт.

28

1972388C1

BRACKET

- governor

1шт.

29

1972389C1

PLATE

- governor

1шт.
