(3-20) - FUEL INJECTION PUMP, DIESEL MODELS

Запчасти Case 1825 (3-20) - FUEL INJECTION PUMP, DIESEL MODELS (03) - FUEL SYSTEM

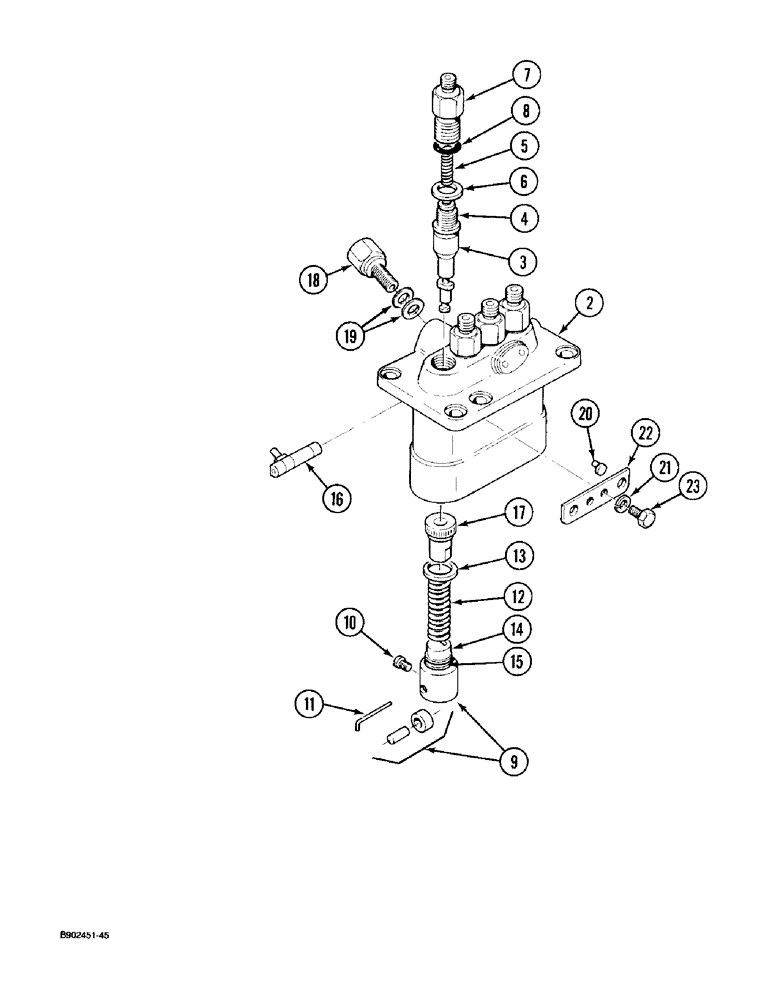

Схема запчастей Case 1825 - (3-20) - FUEL INJECTION PUMP, DIESEL MODELS (03) - FUEL SYSTEM
21
10
16
3
6
18
11
14
5
13
15
23
8
7
20
17
19
4
12
9
2
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1959449C1

PUMP

ASSEMBLY - injection, Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - injection pump, order pump assembly 1959449C1

1шт.

3

1959529C1

PLUNGER ASSY.

ELEMENT - pump

4шт.

4

1959530C1

VALVE

- delivery

4шт.

5

1959531C1

SPRING

- delivery valve

4шт.

6

1959532C1

GASKET

- delivery valve

4шт.

7

1959533C1

HOLDER

- delivery valve

4шт.

8

1959534C1

O-RING

- delivery valve

4шт.

9

1959535C1

TAPPET

- pump, component parts not serviced separately

4шт.

10

1959536C1

PIN

- tappet guide

4шт.

11

1959537C1

PIN

- clamp

4шт.

12

1959538C1

SPRING

- plunger

4шт.

13

1959539C1

SEAT

- spring, upper

4шт.

14

1959540C1

SEAT

- spring, lower

4шт.

15

1959541C1

SHIM

- tappet

4шт.

16

1959542C1

RACK

- control

1шт.

17

1959543C1

SLEEVE

- control

4шт.

18

1959551C1

SCREW

- adjusting

1шт.

19

1959552C1

WASHER

GASKET - adjusting screw

2шт.

20

1959546C1

COLLAR

- plate

2шт.

21

1959547C1

SPRING WASHER

- lock

2шт.

22

1959548C1

PLATE

- adjusting

1шт.

23

1959549C1

BOLT

- adjusting plate

2шт.
