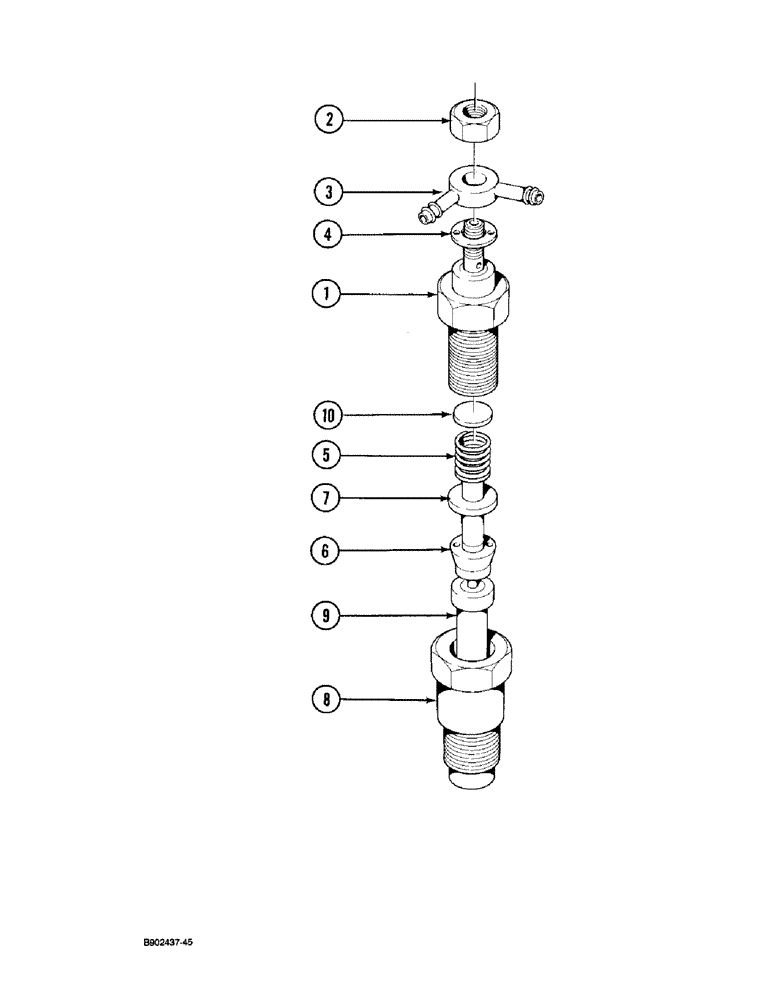

Запчасти Case 1825 (3-18) - FUEL INJECTION NOZZLE, DIESEL MODELS (03) - FUEL SYSTEM

1

1959384C1

NOZZLE CAP

HOLDER ASSEMBLY - nozzle, used prior to engine S/N 771651, Includes: Ref. 2 - 10

4шт.

1

110946A1

NOZZLE CAP

HOLDER ASSEMBLY - nozzel, used with engine S/N 771651 and after, includes all items below except Ref. 3, not part of 110946A1 nozzle holder assembly, must order separately

4шт.

2

1959553C1

NUT

- holder

1шт.

3

1959554C1

JOINT

- eye

1шт.

4

1959555C1

WASHER

- plain

1шт.

5

1959556C1

SPRING

- nozzle

1шт.

6

1959557C1

SPACER

PIECE - distance

1шт.

7

1959558C1

ROD

- push

1шт.

8

1959559C1

NUT

- nozzle

1шт.

9

1959560C1

NOZZLE INJECTION

PIECE - nozzle

1шт.

503201R

REMAN-FUEL INJECTOR

1825 CASE UNI-LOADER (S/N JAF0069587 & AFTER), Reman for New P/N 1959560C1

1шт.

503201C

CORE-FUEL INJECTOR

Return Number

1шт.

10

1959561C1

WASHER

WASHER - adjusting, standard

1шт.

10

1959562C1

WASHER

WASHER - adjusting, 1.0 mm thick

1шт.

10

1959563C1

WASHER

WASHER - adjusting, 1.05 mm thick

1шт.

10

1959564C1

WASHER

WASHER - adjusting, 1.10 mm thick

1шт.

10

1959565C1

WASHER

WASHER - adjusting, 1.15 mm thick

1шт.

10

1959566C1

WASHER

WASHER - adjusting, 1.20 mm thick

1шт.

10

1959567C1

WASHER

WASHER - adjusting, 1.25 mm thick

1шт.

10

1959568C1

WASHER

WASHER - adjusting, 1.30 mm thick

1шт.

10

1959569C1

WASHER

WASHER - adjusting, 1.35 mm thick

1шт.

10

1959570C1

WASHER

WASHER - adjusting, 1.40 mm thick

1шт.

10

1959571C1

WASHER

WASHER - adjusting, 1.45 mm thick

1шт.

10

1959572C1

WASHER

WASHER - adjusting, 1.50 mm thick

1шт.

10

1959573C1

WASHER

WASHER - adjusting, 1.55 mm thick

1шт.

10

1959574C1

WASHER

WASHER - adjusting, 1.60 mm thick

1шт.

10

1959575C1

WASHER

WASHER - adjusting, 1.65 mm thick

1шт.

10

1959576C1

WASHER

WASHER - adjusting, 1.70 mm thick

1шт.

10

1959577C1

WASHER

WASHER - adjusting, 1.75 mm thick

1шт.

10

1959578C1

WASHER

WASHER - adjusting, 1.80 mm thick

1шт.

10

1959579C1

WASHER

WASHER - adjusting, 1.85 mm thick

1шт.

10

1959580C1

WASHER

WASHER - adjusting, 1.90 mm thick

1шт.

10

1959581C1

WASHER

WASHER - adjusting, 1.95 mm thick

1шт.
