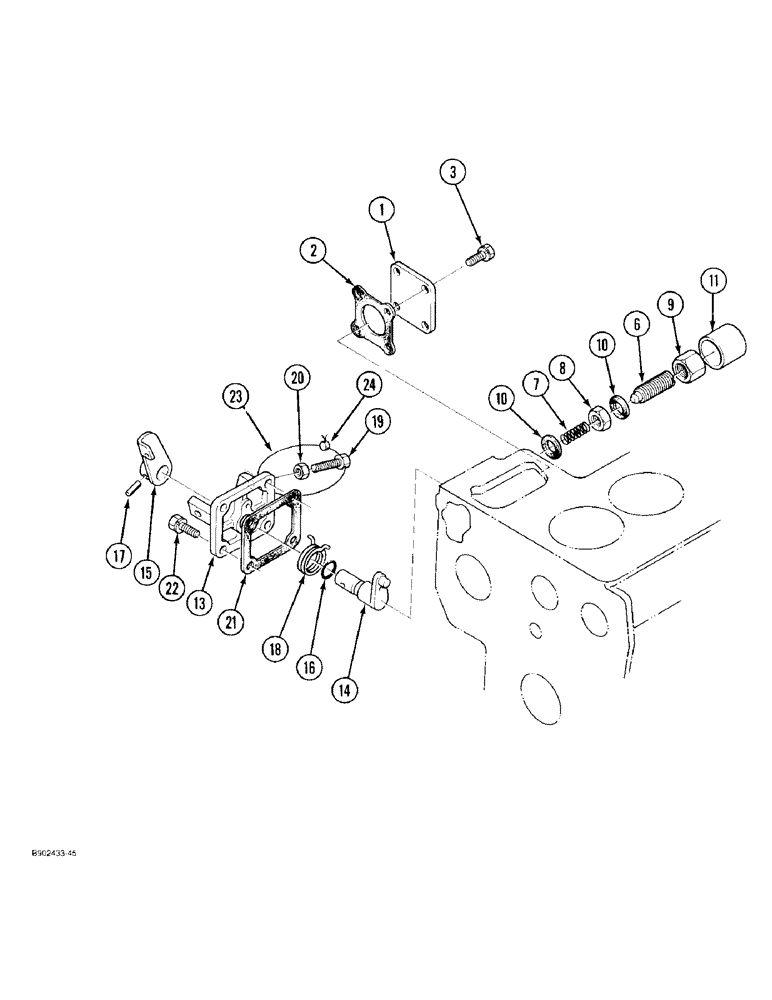

Запчасти Case 1825 (3-10) - ENGINE STOP LEVER, DIESEL MODELS (03) - FUEL SYSTEM

1

1959320C1

PLATE

COVER - oil pump

1шт.

2

1981631C1

GASKET

- oil pump cover

1шт.

3

1959322C1

BOLT

- oil pump cover

4шт.

1959323C1

ADJUSTER

IDLER KIT - engine, Includes: Ref. 6 - 11

1шт.

1959324C1

BOLT,Adj

SCREW ASSEMBLY - adjusting, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - adjusting, order screw assembly 1959324C1

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - order screw assembly 1959324C1

1шт.

8

1959327C1

NUT

- 8 mm

1шт.

9

1959328C1

NUT

- cap, 8 mm

1шт.

10

1959329C1

WASHER

GASKET - adjusting bolt, 8.3 x 13 x 15 mm

2шт.

11

1959330C1

CAP,M14.6 x 19mm

- adjusting bolt

2шт.

1959331C1

LEVER

ASSEMBLY - engine stop, used prior to engine S/N 771651, Includes: Ref. 13 - 18

1шт.

13

1959332C1

COVER

- injection pump

1шт.

1959333C1

SHAFT

ASSEMBLY - lever, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT - lever

1шт.

15

1959335C1

LEVER

- engine stop

1шт.

16

1959336C1

O-RING

- shaft

1шт.

17

1959337C1

PIN

- spring

1шт.

18

1959338C1

SPRING

- return

1шт.

110944A1

LEVER

ASSEMBLY - engine stop, used with engine S/N 771651 and after, not shown, Includes: Ref. 13 - 15

1шт.

13

110943A1

COVER

- injection pump

1шт.

1959333C2

SHAFT

ASSEMBLY - lever, not shown, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT - lever

1шт.

15

1959335C1

LEVER

- engine stop

1шт.

19

1959339C1

PIN

BOLT - spring return stop, 6 x 30 mm

1шт.

20

1959205C1

NUT

- 6 mm

1шт.

21

1981639C1

GASKET

- injection pump cover

1шт.

22

1959155C1

BOLT

BOLT - cover

4шт.

23

NSS

NOT SOLD SEPARAT

WIRE - bolt

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - wire

1шт.
