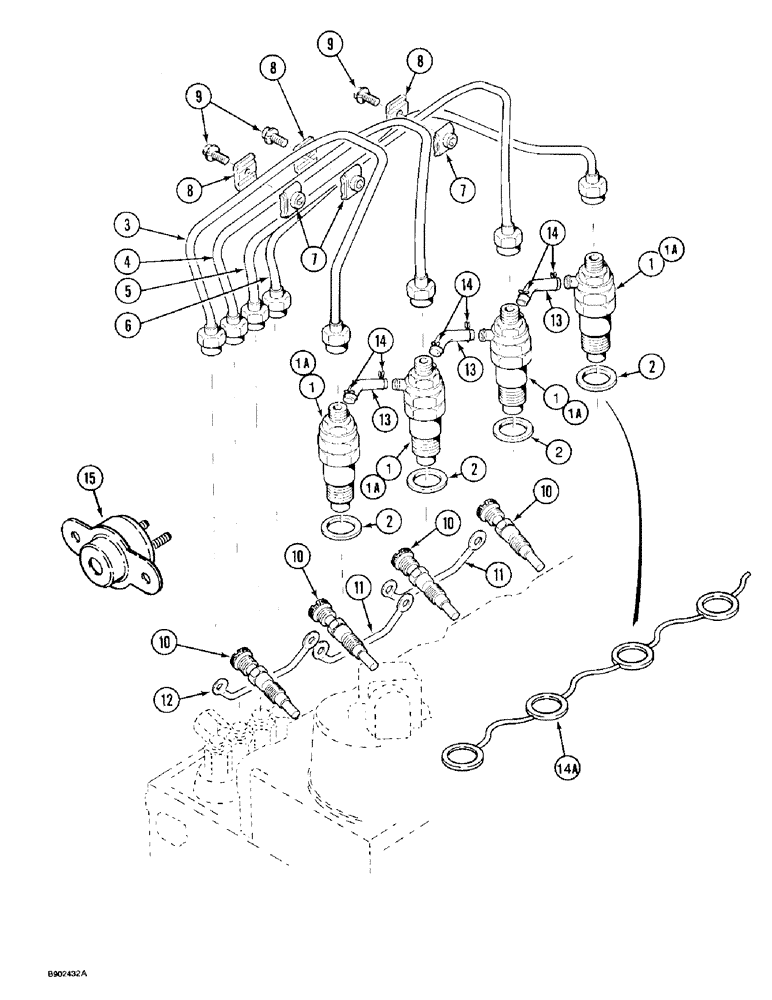

Запчасти Case 1825 (3-08) - FUEL INJECTION SYSTEM, DIESEL MODELS (03) - FUEL SYSTEM

1

1959384C1

NOZZLE CAP

HOLDER ASSEMBLY - nozzle, parts list Fig. 3-18 used prior to engine S/N 771651

4шт.

1a

110946A1

NOZZLE CAP

HOLDER ASSEMBLY - nozzle, parts list Fig. 3-18 used with engine S/N 771651 and after

4шт.

2

1959385C1

WASHER

GASKET - nozzle holder

4шт.

3

1959389C1

PIPE

TUBE - fuel injection 1

1шт.

4

1959390C1

PIPE

TUBE - fuel injection 2

1шт.

5

1959391C1

PIPE

TUBE - fuel injection 3

1шт.

6

1959392C1

PIPE

TUBE - fuel injection 4

1шт.

7

1959393C1

HOSE CLIP

CLAMP - injection tube, with welded nut

3шт.

8

1959394C1

HOSE CLIP

CLAMP - injection tube, plain half

3шт.

9

1959395C1

SCREW

- with washer

3шт.

10

1959396C1

GLOW PLUG

PLUG - glow

4шт.

11

1959397C1

ELECTRICAL WIRE

CORD - glow plug

2шт.

12

1959398C1

ELECTRICAL WIRE

CORD - glow plug

1шт.

13

1959399C1

PIPE

ASSEMBLY - overflow used prior to engine S/N 771651, Includes: Ref. 14

3шт.

14

299486R1

HOSE CLAMP,#7, 7/16", Spring

CLIP - pipe, used with pipe assembly 1959399C1

6шт.

14a

106920A1

TUBE ASSY.

PIPE ASSEMBLY - overflow, used with engine S/N 771651 and after

1шт.

15

1959598C1

RESISTOR

INDICATOR - glow plug

1шт.
