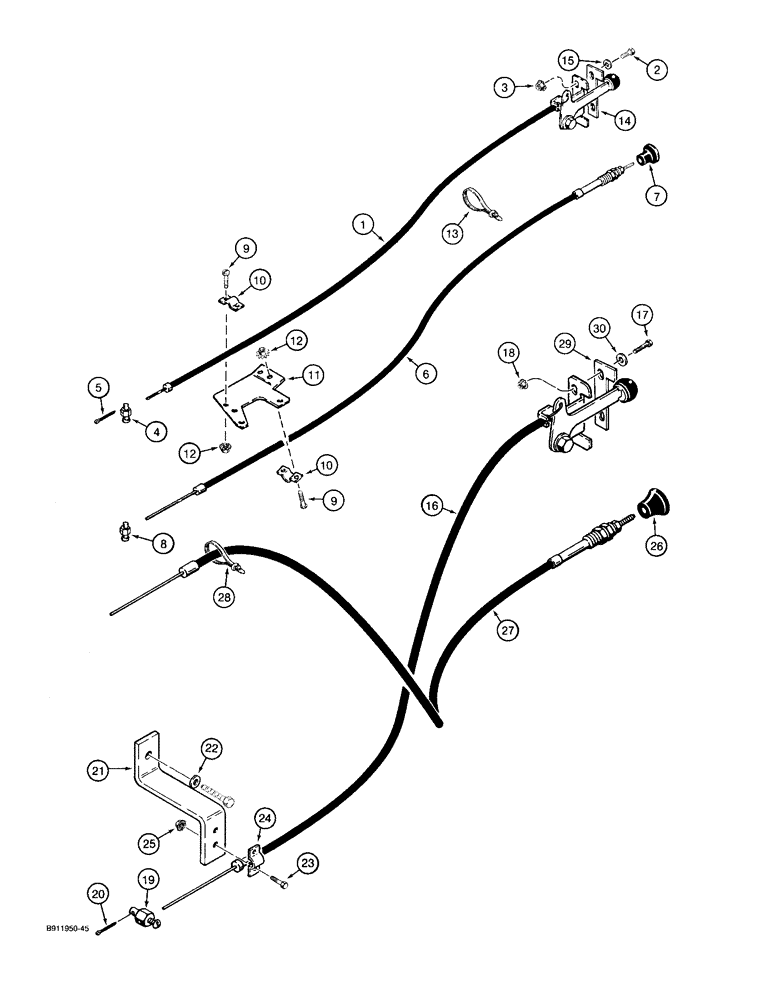

Запчасти Case 1825 (3-06) - ENGINE CONTROLS, PRIOR TO P.I.N. JAF0096671 (03) - FUEL SYSTEM

1

125091A1

CABLE

- throttle control, no longer available, for service, order items 1 and 1A on Fig. 3-07A, diesel models

1шт.

2

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

- machine, hex head, No. 10 NC x 5/8 inch, diesel models

2шт.

3

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC, diesel models

2шт.

4

D92852

PIVOT

STOP - throttle cable, diesel models

1шт.

5

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Diesel models 3/32" x 1/2"

1шт.

6

104039A1

CABLE ASSY.

CABLE - fuel shut-off (replaces D122111), diesel models

1шт.

7

D91273

KNOB

- fuel shut-off cable, diesel models

1шт.

8

L32208

CLAMP

STOP - fuel shut-off cable, diesel models

1шт.

9

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch, diesel models

4шт.

10

351100C1

CLAMP

- cables, diesel models

2шт.

11

D122051

PLATE

- cables, diesel models

1шт.

12

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC, diesel models

4шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, diesel models

1шт.

14

121831A1

LARGE PLATE

BRACKET - throttle limit plate, was H438528, diesel models

1шт.

15

495-31022

WASHER,#10

Diesel models #10

2шт.

16

E20622

CABLE

- throttle control, no longer available for service, order items 16 and 16A on Fig. 3-07A, gasoline models

1шт.

17

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

- machine, hex head, No. 10 NC x 5/8 inch, gasoline models

2шт.

18

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC, gasoline models

2шт.

19

D92852

PIVOT

- throttle cable, gasoline models

1шт.

20

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Gasoline models 3/32" x 1/2"

1шт.

21

E20293

BRACKET

- throttle cable mounting, use existing lower mounting bolt for governor, was D137826, gasoline models

1шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Gasoline models 3/8", SAE

1шт.

23

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

- machine, hex head, No. 10 NC x 5/8 inch, gasoline models

2шт.

24

351100C1

CLAMP

- throttle cable, gasoline models

1шт.

25

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC, gasoline models

2шт.

26

D91274

KNOB

- choke control cable, gasoline models

1шт.

27

104041A1

CABLE ASSY.

CABLE - choke (replaces D137836), gasoline models

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, gasoline models

1шт.

29

137272A1

LARGE PLATE

BRACKET - throttle limit plate, was H438528, gasoline models

1шт.

30

495-31022

WASHER,#10

Gasoline models #10

2шт.
