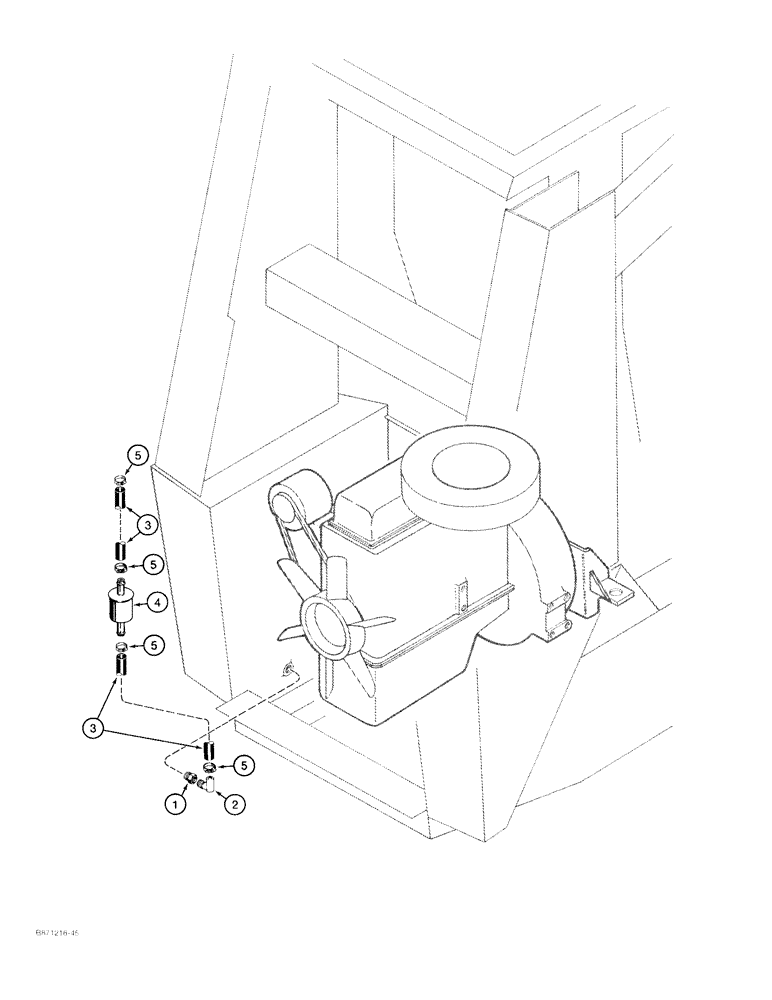

Запчасти Case 1825 (3-04) - FUEL FILTER AND FUEL LINES TO ENGINE, GASOLINE MODELS (03) - FUEL SYSTEM

1

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- pipe, 3/8 male x 1/4 inch female

1шт.

2

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 inch barb end x PT

1шт.

3

D51735

FUEL HOSE

HOSE - 1/4 (6) x 9/16 (14) x 9 inch (229 mm), fuel supply, cut from D52518 bulk hose, see below

2шт.

4

L79756

FILTER, FUEL

FILTER - fuel

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

4шт.

D52518

INTAKE AIR HOSE,0.25" ID x 17.50", SAE 30R1 or SAE 30R3

0.25" ID x 17.50", SAE 30R1 or SAE 30R3

1шт.
