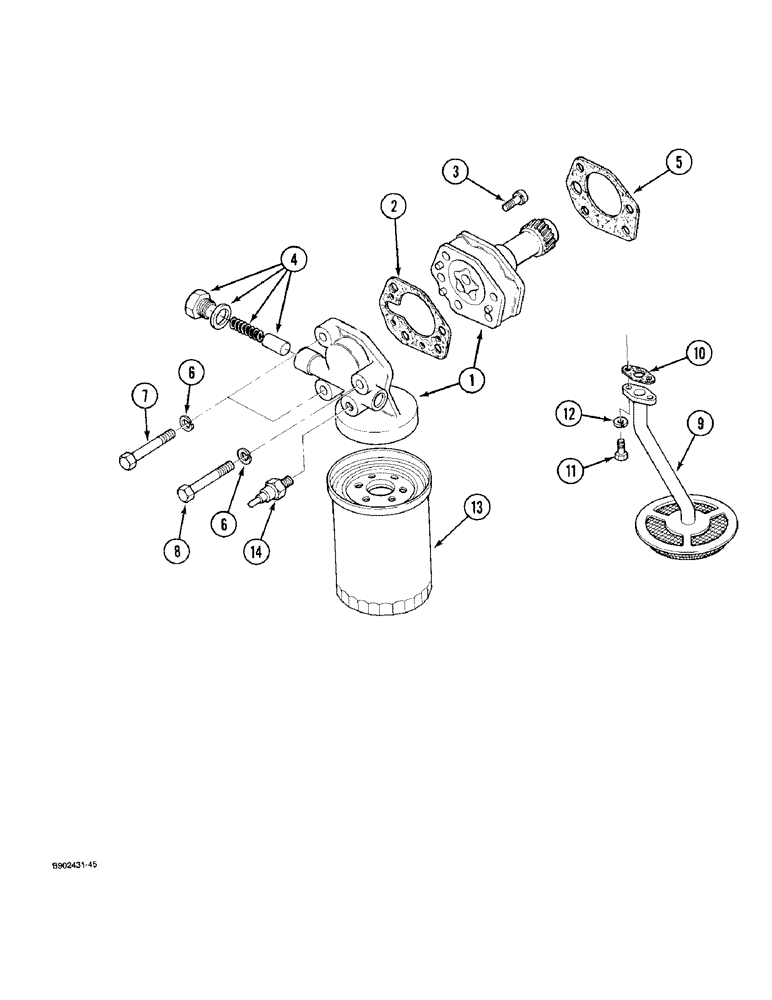

Запчасти Case 1825 (2-52) - OIL PUMP AND FILTER, GASOLINE MODELS (02) - ENGINE

1972197C1

PUMP

ASSEMBLY - oil, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - oil

1шт.

2

1972245C1

GASKET

- oil pump cover

1шт.

3

1972246C1

CAPTIVE WASHER SCREW

SCREW - pan head with lock washer

1шт.

4

1972247C1

VALVE

- regulator

1шт.

5

1972198C1

GASKET

- oil pump to cylinder block

1шт.

6

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

7

1972199C1

BOLT

- oil pump

2шт.

8

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

- hex, 8-1.25 x 55 mm

1шт.

9

1972200C1

STRAINER ASSY.

STRAINER - oil

1шт.

10

1972201C1

GASKET

- oil strainer

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 6-1.25 x 20 mm

2шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

13

1972202C1

ELEMENT

- oil filter

1шт.

14

1972203C1

SWITCH

- oil pressure

1шт.
