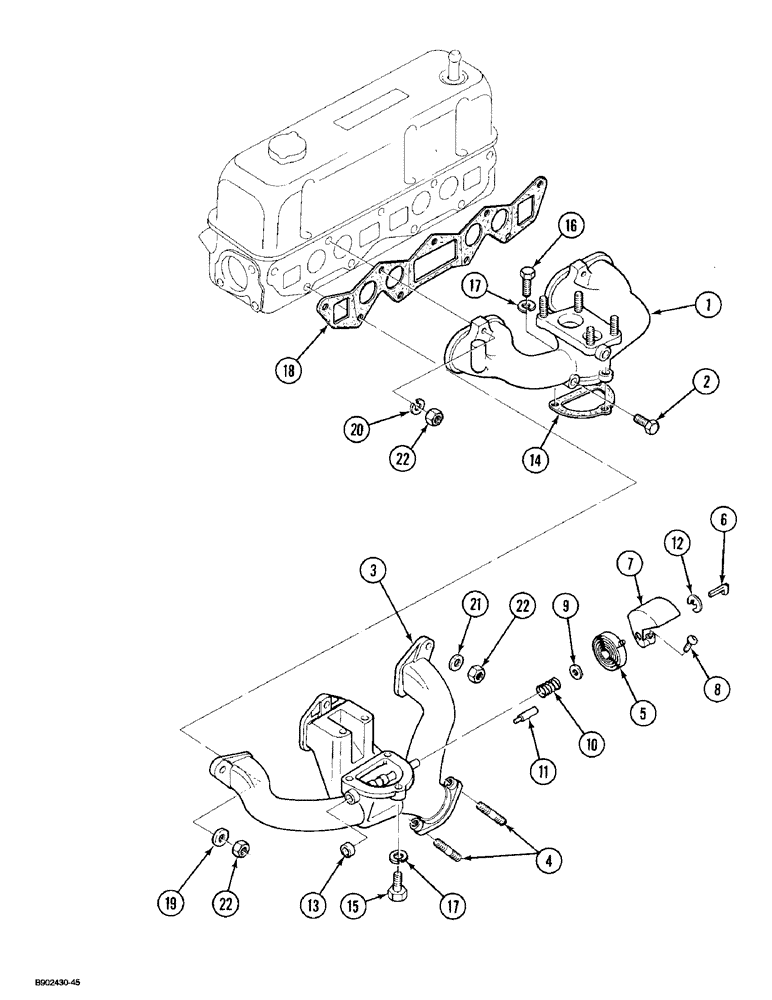

Запчасти Case 1825 (2-50) - MANIFOLDS, GASOLINE MODELS (02) - ENGINE

1

1972185C1

MANIFOLD

- intake

1шт.

2

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex, 1/8 inch PT

1шт.

3

1972186C1

MANIFOLD

- exhaust

1шт.

4

1972187C1

STUD

- exhaust tube mounting

2шт.

5

1972188C1

SPRING

- heat control thermostat

1шт.

6

1972189C1

BUCKET TOOTH KEY

KEY - counterweight

1шт.

7

1972190C1

WEIGHT

COUNTERWEIGHT - heat control

1шт.

8

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

Counterweight mounting Cross Pan Hd, M5 x 16, 4.8

1шт.

9

1972191C1

WASHER

- heat control

1шт.

10

1972192C1

SPRING

- heat control stop

1шт.

11

1972193C1

PIN

- heat control spring

1шт.

12

1972326C1

RING

E-RING - counterweight key

1шт.

13

30478R1

PLUG,M10, Tapered

- 10 mm tapered cup, if used

1шт.

13

1960039C1

DOWEL

PLUG - welch, if used

1шт.

14

1972194C1

MANIFOLD GASKET

- intake to exhaust manifold

1шт.

15

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

18

1972195C1

CYLINDER HEAD GASKET

- manifold to cylinder head

1шт.

19

1972196C1

YOKE

WASHER - flat, manifold

4шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

22

825-1408

NUT,M8, Cl 8

9шт.

16

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.
