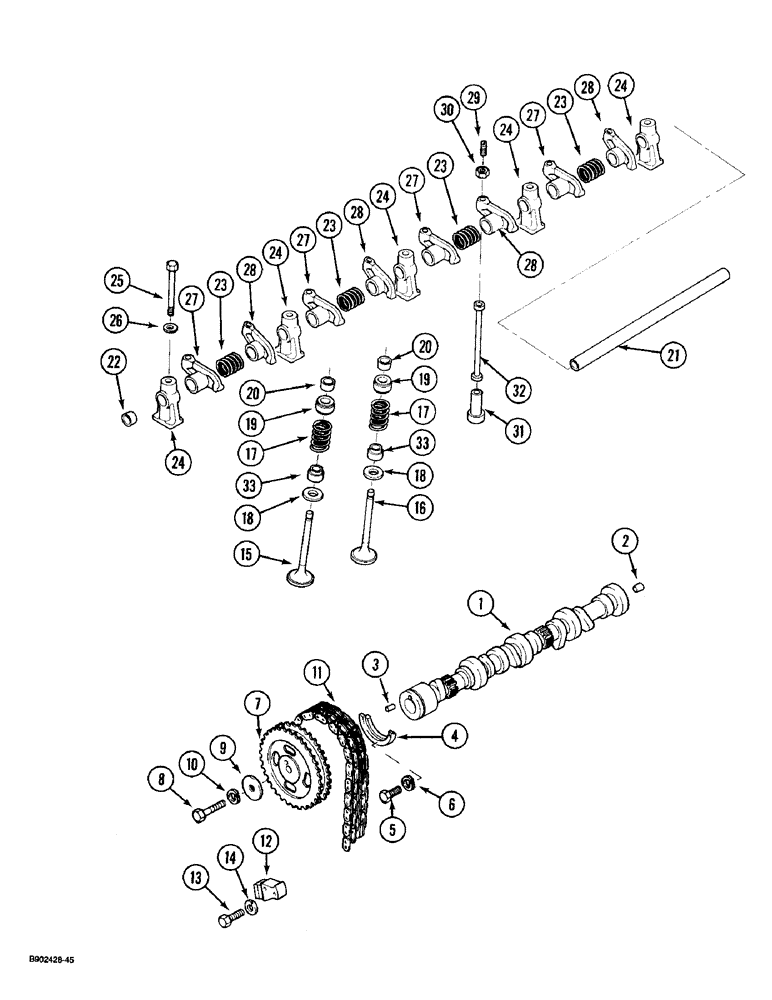

Запчасти Case 1825 (2-46) - CAMSHAFT AND VALVE MECHANISM, GASOLINE MODELS (02) - ENGINE

1

1972166C1

CAMSHAFT

ASSEMBLY - engine, Includes: Ref. 2 and 3

1шт.

2

1960038C1

DOWEL

PLUG - taper

1шт.

3

1972167C1

DOWEL

- camshaft sprocket

1шт.

4

1972168C1

LARGE PLATE

PLATE - camshaft locating

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

1972169C1

PINION

SPROCKET - camshaft

1шт.

8

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

9

1972170C1

WASHER

- camshaft

1шт.

10

892-11010

LOCK WASHER,M10

1шт.

11

1972171C1

CHAIN (AG)

CHAIN - camshaft

1шт.

12

1972172C1

TENSIONER

- chain

1шт.

13

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

15

1972238C1

VALVE

- intake

4шт.

16

1972239C1

VALVE

- exhaust

4шт.

17

1972173C1

VALVE SPRING

SPRING - valve

8шт.

18

1972174C1

SEAT, VALVE

SEAT - valve spring

8шт.

19

1972175C1

HOLDER

RETAINER - valve spring

8шт.

20

1972176C1

SEAT, VALVE

KEEPER - valve

8шт.

1972240C1

SHAFT

ASSEMBLY - rocker, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - rocker

1шт.

22

1972242C1

PLUG

- expansion

2шт.

23

1972177C1

VALVE SPRING

SPRING - rocker shaft, inside

4шт.

24

1972178C1

BRACKET

- rocker shaft

5шт.

25

1972179C1

BOLT

- rocker shaft bracket

5шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

27

1972243C1

LEVER

- intake valve rocker

4шт.

28

1972244C1

LEVER

- exhaust valve rocker

4шт.

29

1972180C1

BOLT,M8 x 1 x 35mm

SCREW - valve rocker adjusting

8шт.

30

1972181C1

NUT

- adjusting screw lock

8шт.

31

1972182C1

SUPPORT

LIFTER - valve

8шт.

32

1972183C1

PUSH ROD

ROD - push

8шт.

33

1972184C1

OIL SEAL

- valve oil

8шт.
