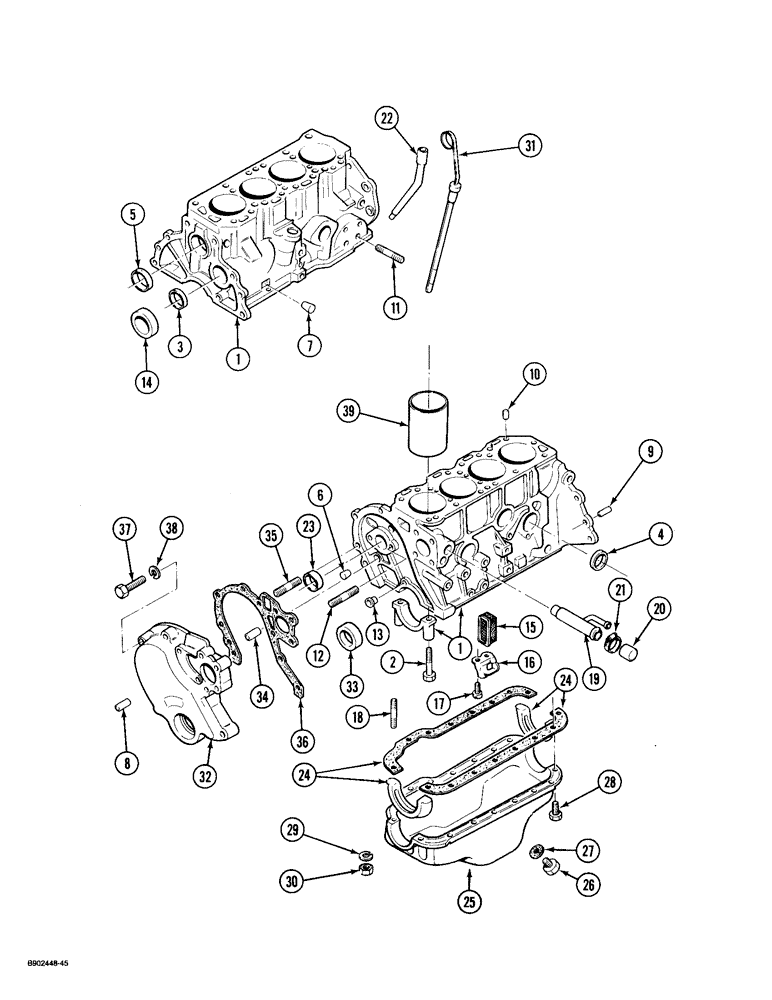

Запчасти Case 1825 (2-38) - CYLINDER BLOCK AND OIL PAN, GASOLINE MODELS (02) - ENGINE

1972101C1

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - cylinder, order cylinder block assembly 1972101C1

1шт.

2

1972103C1

BOLT

- main bearing cap

10шт.

3

1972104C1

PLUG

- cam bearing

1шт.

4

1972331C1

PLUG

- core hole, cylinder block

3шт.

re: 1972331c1 plug---this is a 1-5/16 soft plug. Nissen P/N 0933-13510. block heater for this hole---195964oc1.

1шт.

5

1972332C1

PLUG

- core hole, cylinder head

1шт.

6

1972333C1

PLUG

- taper, oil gallery

2шт.

7

1972105C1

PLUG

- taper, oil gallery

7шт.

8

1972106C1

PIN, SPLIT (COTTER)

PIN - dowel, front cover

2шт.

9

1972107C1

DOWEL

PIN - dowel, rear block face

2шт.

10

1972108C1

DOWEL

PIN - dowel, cylinder head locating

2шт.

11

1972324C1

STUD

- fuel pump

2шт.

12

1972325C1

STUD

- water pump

3шт.

13

1972109C1

PORT

ORIFICE - oil gallery

1шт.

14

1972227C1

OIL SEAL

- camshaft, rear oil

1шт.

15

1972110C1

FILTER

SCREEN - oil pickup

1шт.

16

1972111C1

BRACKET

BAFFLE - crankcase

1шт.

17

1972334C1

SCREW

- 6 mm pan head machine

2шт.

18

1972322C1

STUD

- oil pan 6 x 25 mm

2шт.

19

1972112C1

SUCTION PIPE

PIPE - water pump suction

1шт.

20

1972113C1

PLUG

CAP - connector

1шт.

21

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

1шт.

22

1972114C1

TUBE

- dipstick

2шт.

23

1972229C1

BUSHING

- set, camshaft

1шт.

23

1972290C1

BUSHING

- set, camshaft (0.25 mm undersize)

1шт.

23

1972291C1

BUSHING

- set, camshaft (0.50 mm undersize)

1шт.

23

1972292C1

BUSHING

- set, camshaft (0.75 mm undersize)

1шт.

24

1972230C1

OIL PAN GASKET SET

- set, oil pan

1шт.

25

1972115C1

HOUSING

PAN ASSEMBLY - oil, Includes: Ref. 26 and 27

1шт.

26

1972116C1

PLUG

- drain

1шт.

27

1972117C1

GASKET

- drain plug

1шт.

28

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

12шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

16шт.

30

825-1406

NUT,M6, Cl 8

4шт.

31

1972118C1

DIPSTICK

- oil level

1шт.

32

1972119C1

COVER

- timing chain

1шт.

33

1972228C1

OIL SEAL

- crankshaft, front, oil

1шт.

34

1972106C1

PIN, SPLIT (COTTER)

PIN - dowel, water pump

2шт.

35

1972322C1

STUD

- timing chain cover, 6 x 25 mm

2шт.

36

1972121C1

GASKET

- timing chain cover

1шт.

37

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

6шт.

38

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

39

1972293C1

SLEEVE CYLINDER

LINER - cylinder (4.00 mm oversize)

4шт.

39

1972294C1

SLEEVE CYLINDER

LINER - cylinder (4.50 mm oversize)

4шт.

39

1972295C1

SLEEVE CYLINDER

LINER - cylinder (5.00 mm oversize)

4шт.

1972286C1

BLOCK

ENGINE - bare

1шт.

1972287C1

BLOCK

ENGINE - short

1шт.

A173768

ENGINE ASSEMBLY

ENGINE - complete, gasoline

1шт.
