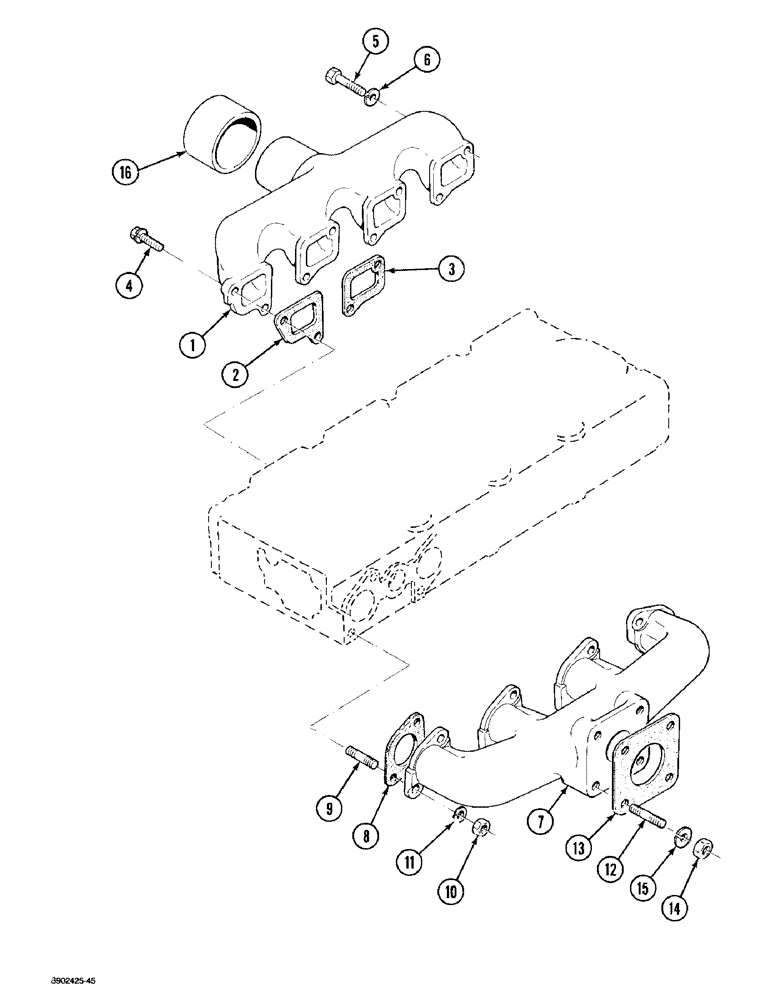

Запчасти Case 1825 (2-34) - INTAKE MANIFOLD & EXHAUST MANIFOLD, DIESEL MODELS (02) - ENGINE

1

1959255C1

MANIFOLD

- intake

1шт.

2

1981636C1

MANIFOLD GASKET

- intake manifold, No. 1 cylinder

1шт.

3

1981637C1

MANIFOLD GASKET

- intake manifold, No. 2, No. 3, and No. 4 cylinders

3шт.

4

1959215C1

BOLT

- bearing case cover

5шт.

5

1959259C1

BOLT

- manifold

3шт.

6

1959206C1

SPRING WASHER

- lock

3шт.

7

1959261C1

MANIFOLD

- exhaust

1шт.

8

1959262C1

GASKET

- exhaust manifold

4шт.

9

1959263C1

STUD

- exhaust manifold, 6 x 28 mm

8шт.

10

1959205C1

NUT

- cover stud, 6 mm

8шт.

11

1959206C1

SPRING WASHER

- lock

8шт.

12

1959265C1

STUD

- 10 mm

4шт.

13

1981630C1

GASKET

- muffler

1шт.

14

1959269C1

NUT

- 10 mm

4шт.

15

1959171C1

SPRING WASHER

- lock

4шт.

16

1959271C1

CAP

- intake manifold

1шт.
