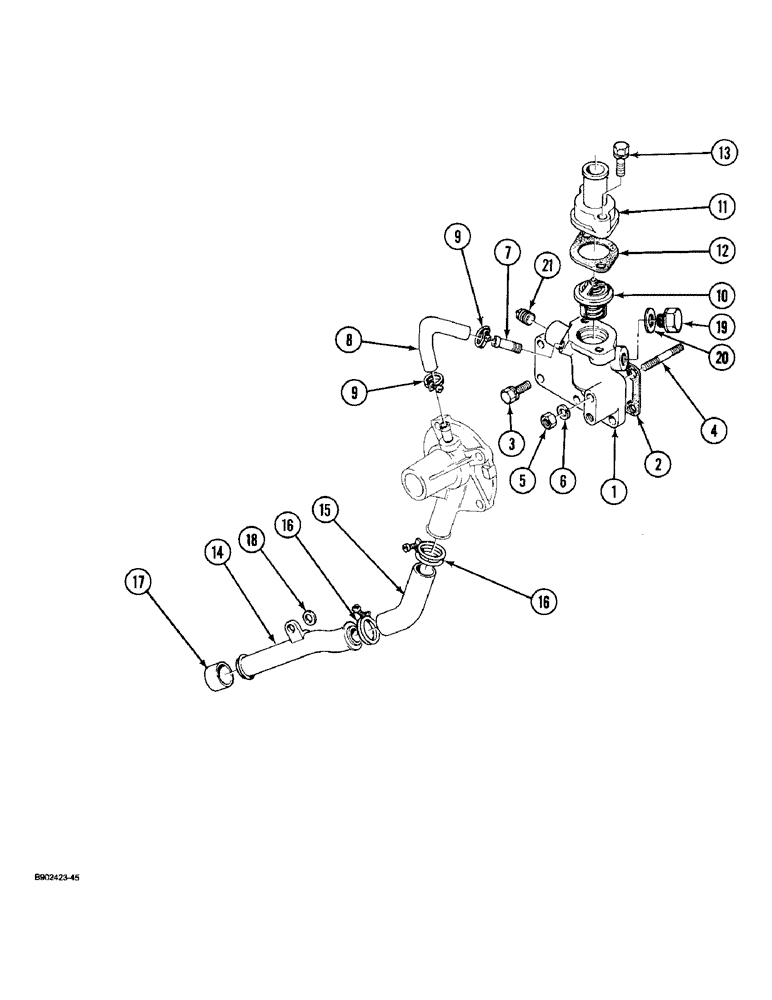

Запчасти Case 1825 (2-30) - THERMOSTAT, HOUSING, AND TUBES, DIESEL MODELS (02) - ENGINE

1

1959431C1

FLANGE

- thermostat housing

1шт.

2

1981633C1

GASKET

- housing flange

1шт.

3

1959319C1

BOLT

- idler gear shaft

6шт.

4

1959433C1

STUD

- housing flange

1шт.

5

1959205C1

NUT

- cover stud, 6 mm

1шт.

6

1959206C1

SPRING WASHER

- lock

1шт.

7

1959434C1

PIPE,6.5 mm ID, 10.5 mm OD, 27 mm Length

TUBE - water return, threaded

1шт.

7a

110954A1

TUBE ASSY.

TUBE - water return

1шт.

8

1959435C1

PIPE,9 mm ID, 16 mm OD, 66, 46 mm Length

TUBE - water return, bent

1шт.

9

1959436C1

CLAMP

- tube, includes hardware

2шт.

10

1959437C1

THERMOSTAT

- water

1шт.

11

1959438C1

COVER

- thermostat

1шт.

12

1981634C1

GASKET

- thermostat cover

1шт.

REF 12 - 1981634C1. CAN ALSO USE 200071A1 PER ECN H989015. 08/12/98

1шт.

13

1959440C1

BOLT

- thermostat cover

2шт.

14

1959441C1

PIPE

TUBE - water, capped, from water pump

1шт.

15

1959442C1

PIPE,25 mm ID, 33 mm OD, 66 mm Length

TUBE - water, at water pump

1шт.

16

1959443C1

CLAMP

- tube, includes hardware

2шт.

17

1959444C1

CAP

- tube

1шт.

18

1959409C1

WASHER

- flat

1шт.

19

1959445C1

PLUG

- hex head, thermostat cover

1шт.

20

1959446C1

WASHER

GASKET - plug

1шт.

21

1959447C1

PLUG

- square head, thermostat cover

1шт.
