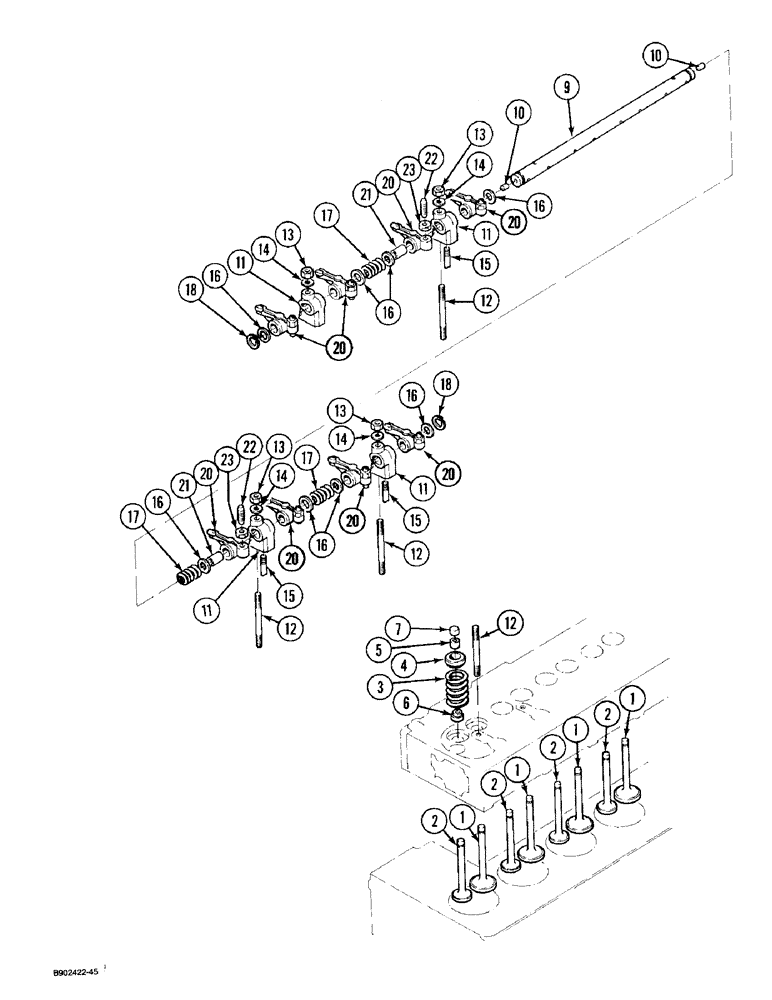

Запчасти Case 1825 (2-28) - VALVE MECHANISM AND ROCKER ARM, DIESEL MODELS (02) - ENGINE

1

1959274C1

VALVE

- inlet

4шт.

2

1959275C1

VALVE

- exhaust

4шт.

3

1959276C1

SPRING

- valve

8шт.

4

1959277C1

RETAINER

- valve spring

8шт.

5

1959278C1

SPACER

KEEPER - valve spring

16шт.

6

1959279C1

SEAL

- valve stem

8шт.

7

1959280C1

PLUG

CAP - valve

8шт.

1959284C1

SHAFT

ASSEMBLY - rocker arm, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - rocker, order shaft assembly 1959284C1

1шт.

10

1959283C1

SET SCREW

- set, rocker arm, 6 x 9 mm

2шт.

11

1959286C1

BRACKET

- rocker arm

4шт.

12

1959287C1

STUD

- bracket, 7 x 87 mm

4шт.

13

1959288C1

NUT

- bracket stud, M7

4шт.

14

1959289C1

WASHER

- flat, 7.5 x 15 x 1.6 mm

4шт.

15

1959290C1

SET SCREW

- set, rocker arm, 4 x 26 mm

4шт.

16

1959291C1

WASHER

- rocker arm shaft, 11.2 x 17 x 1 mm

8шт.

17

1959292C1

SPRING

- rocker arm

3шт.

18

1959293C1

RING, SNAP

RING - snap, external

2шт.

1959294C1

ARM

ASSEMBLY - rocker

8шт.

20

NSS

NOT SOLD SEPARAT

ARM - rocker, order arm assembly 1959294C1, Includes: Ref. 20 - 23

8шт.

21

1959296C1

BUSHING

- rocker arm

8шт.

22

1959297C1

ADJUSTMENT SCREW

- adjusting, 7 x 25.5 mm

8шт.

23

1959298C1

NUT

- adjusting screw, 7 mm

8шт.
